10.1 Inch TFT Screen Panel Capacitive Touch 1024*600 Resolution 700nits RGB Interface

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW100076B0-XL
Viewing Direction:
IPS
Touch Interface:
IIC
LCM Driver IC:
HX8282A11+HX8696
Operating temperature:
-20+70℃
Active Area:
222.72*125.28(mm)
LCM Interface:
RGB 24 BIT
Drive Element:
TFT Active Matrix
Highlight:

1024*600 TFT Screen Panel

,

10.1 Inch TFT Screen Panel

,

700nits TFT Screen Panel

Product Description





High Brightness IPS 10.1 inch RGB TFT Display 1024x600 with PCAP​ Description



TXW100076B0-XL is a 10.1-inch RGB interface high brightness 1024 x 600 IPS TFT-LCD module with a projected capacitive touch screen (PCAP). This TFT module adopts IPS technology and has the advantages of a wide viewing angle of left: 85/right: 85/up: 85/down: 85 degrees (typical) and high brightness of 700 nits (typical value). If the customer requires higher brightness, please contact our sales staff.

Product: 10.1" Inch TFT LCD Resolution: 1024x600 Dots
Touch Screen: With CTP Cover Glass Dimension: Customizable
Outline Dimension:

252*150*6.5mm

 Viewing Direction: All Viewing Angles (85/85/85/85)
Interface: RGB Pin Number: 50 Pins
Connection: Plugging Surface Luminance: 700 Cd/m2(nits)
LED Lifetime: 30,000 Hours Compliance: CE FCC & RoHS Compliant









High Brightness IPS 10.1 inch RGB TFT Display 1024x600 with PCAP​ Drawing

10.1 Inch TFT Screen Panel Capacitive Touch 1024*600 Resolution 700nits RGB Interface 0





10.1 Inch TFT Screen Panel Capacitive Touch 1024*600 Resolution 700nits RGB Interface 1







Absolute Maximum Rating



Characteristics Symbol Min. Max. Unit
LCM Operating Temperature TOPR -20 +70 °C
LCM Storage Temperature TSTG -30 +80 °C
TP Operating Temperature & Humidity (20% ~ 90%RH) TOPR -20 +70 °C
TP SStorage Temperature & Humidity (20% ~ 90%RH) TSTG -30 +80 °C
Humidity RH -- 90 %





TFT DC Characteristics



Characteristics Symbol Min. Typ. Max. Unit Note
TFT OperationFrame rate Hz -- 60 -- Hz
Supply Voltage for(DC/DC) VDD 3.0 3.3 3.3 V
TFT Gate ON Voltage VGH 16.5 17 17.5 V Note 2
TFT Gate OFF Voltage VGL -7.5 -7 -6.5 V Note 2
TFT Common Voltage Vcom 3.0 3.3 4.7 V Note 1
AVDD Avdd -- 9.6 -- V Note 3

Note 1: VCOM value should be adjusted by different condition to optimize Flicker Value.
Note 2: VGH and VGL are the operating voltages of TFT gate.
Note 3: Adjust the contrast, make the color bigger and darker, and make the color smaller and lighter.





Module Function Description



Pin No. Symbol LCM Description remarks
1 LEDA POWER SUPPLY+ FOR BACKLIGHT ANODE
2 LEDA POWER SUPPLY+ FOR BACKLIGHT ANODE
3 LEDK POWER SUPPLY- FOR BACKLIGHT CATHODE
4 LEDK POWER SUPPLY- FOR BACKLIGHT CATHODE
5 GND

Power ground


6 VCOM

Common voltage


7 DVDD

Power for Digital Circuit 3.3V


8 MODE

DE/SYNC mode select. MODE=H:DE mode;MODE=L:SYNC mode


9 DE Data enable signal in RGB I/F mode 1
10 VS Vertical sync. Signal in RGB I/F
11 HS Horizontal sync. Signal in RGB I/F
12 B7 Blue data
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data
20 G7 Green data
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data
28 R7 Red data
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data
36 GND Power ground
37 DCLK Pixel clock signal in RGB I/F
38 GND Power ground
39 SHLR

Source output shift horizontal direction select:

‘H’: S[1]->S[2]->…->S[1920] (Default)

‘L’: S[1920]->S[1919]->…->S[1]


40 UPDN

Gate output shift vertical direction select:

‘H’: Scan Up to Down

‘L’: Scan Down to Up


41 VGH

Gate ON Voltage


42 VGL

Gate OFF Voltage


43 AVDD

Power for Analog Circuit


44 RESET

Global reser pin


45 NC

No connection


46 VCOM

Common Voltage


47 DITHB

Dithering function. Dithering function. DITHER = H:Enable internal dithering function;
DITHER = L:Disable internal dithering function


48 GND Power ground
49 NC

No connection


50 NC

No connection

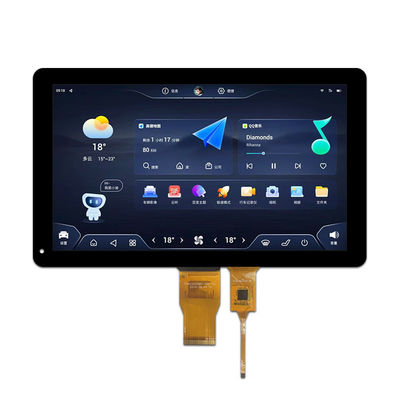

Product Image

10.1 Inch TFT Screen Panel Capacitive Touch 1024*600 Resolution 700nits RGB Interface 2





10.1 Inch TFT Screen Panel Capacitive Touch 1024*600 Resolution 700nits RGB Interface 3
