13.3-inch EDP TFT LCD Display Product Introduction
The 13.3-inch EDP TFT LCD display is a device that utilizes high-end display technology and is widely popular in portable devices, commercial displays, and industrial applications for its excellent image quality and versatility. The following is a detailed introduction to a 13.3-inch EDP TFT LCD display with a resolution of 1920 * 1080 pixels, 30 pin interface, and 72% NTSC color gamut coverage and a brightness of 1000cd/m ²
Product Features
Brand and Model: TXW133013B0
Panel type: a-Si TFT-LCD
Size: 13.3 inches
Resolution: 1920 (RGB) × 1080 (FHD)
Pixel arrangement: RGB vertical stripes
Aspect ratio: 16:9
Active area:293.76*165.24mm
Outline Size:307.6*183.05*5.5mm
Interface:EDP 30 PIN
Brightness: 1000cd/m ² (typical value)
Viewing angle: 85/85/85/85 (typical value)
Color gamut coverage: 72% (NTSC)
Response time: 30 (typical value) (Tr+Td) ms
Display mode: VA/IPS, normally black display, transmissive
Backlight type: WLED
Working temperature: -20~60 ° C
Storage temperature: -20~70 ° C
Optical Performance
This 13.3 inch TFT offers high brightness of 1000cd/m ² and high contrast ratio of 800:1, ensuring clear images and vivid colors. 72% of the NTSC color gamut coverage ensures the true reproduction of colors, making the display effect closer to natural colors.
Interface Characteristics
Signal category: EDP
Panel voltage: 3.3V (typical value)
Panel current: 279/468mA (typical/maximum)
Interface type: Terminal
Interface pin count: 30 pins
Application Area
This 13.3-inch EDP TFT LCD display is suitable for various application scenarios, Outdoor highlight display, medical equipment and instrument display, industrial automation display, logistics and express cabinet display, etc
Summary
This 13.3-inch EDP TFT LCD display provides users with an excellent visual experience with its high resolution, high brightness, high contrast, and wide color gamut coverage. Whether in strong outdoor light or low indoor light environments, clear display effects can be guaranteed. Its versatility and reliability make it an ideal choice for various application scenarios.

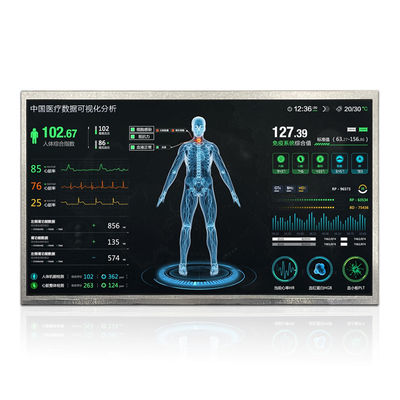

Product Image
