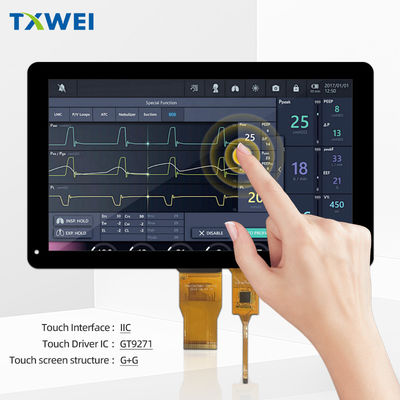

High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW100076B0-XL
Lcm Pin N Count:
50 PIN
Viewing Direction:
ALL O’CLOCK
Storage temperature:
-20+70
Size:
10.1
Mechanical OutlineSize(W*H*T):
252*150*6.5(mm)
Number Of Pixels:
1024*600
LCM Interface:
RGB 24 BIT
Active Area:
222.72*125.28(mm)
Highlight:

24 BIT LCM Interface LCD Module

,

700 Nits Brightness LCD Module

,

10.1 Inch LCD Module

Product Description



IPS TFT LCD Screen 10.1 Inch FHD RGB Display Touch Screen Product Introduction



 10.1-inch FHD RGB monitor typically refers to a liquid crystal display with a 1024*600 full HD resolution, featuring a 10.1-inch IPS TFT LCD panel and an enhanced display interface (RGB). Here are some key product features and parameters of TXW100076B0-XL:



Panel type: IPS TFT LCD, providing a wide viewing angle and color accuracy.
Resolution: 1024*600 pixels, also known as Full HD (FHD) resolution, providing clear image details.
Brightness: The brightness of different models may vary, but it is generally around 700cd/m ², suitable for various usage environments.
Contrast ratio: 800:1, providing excellent light and dark detail representation.
Viewing angle: IPS technology provides a viewing angle of nearly 180 °, allowing color and contrast to be maintained from different angles.
Response time: usually around 30ms, sufficient for non professional graphic applications.
Color gamut: Covering 72% of NTSC color gamut, capable of displaying rich colors.
Interface: RGB interface, supporting 50 pin terminal connection, providing high-speed data transmission.
Backlight type: WLED backlight, providing uniform brightness and longer lifespan.
Working temperature: generally ranging from -20 to 70 ° C, suitable for various environmental conditions.
Capacitive Touchscreen: Offering capacitive touch screen functionality, supporting multi touch. allowing users to interact through touch. Capacitive touch screens have the characteristics of high transparency and fast response, making them suitable for applications that require direct interaction.





Mechanical Specifications



Parameter Specification Unit
Model number

TXW100076B0-XL


Display size 10.1” (Diagonal) inch
outline dimensions

252*150*6.5

 mm
Active area

222.72*125.28

 mm
Pixel Format

1024*600

(1pixel = R + G + B dot)

 pixel
Pixel pitch 0.153(H) x 0.153 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Surface treatment of front polarizer Anti-glare coating: (3H)
Touchscreen Projected Capacitive Touch Panel






Product Drawing



High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface 0

High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface 1





TFT DC Characteristics



Characteristics Symbol Min. Typ. Max. Unit Note
TFT OperationFrame rate Hz -- 60 -- Hz
Supply Voltage for(DC/DC) VDD 3.0 3.3 3.3 V
TFT Gate ON Voltage VGH 16.5 17 17.5 V Note 2
TFT Gate OFF Voltage VGL -7.5 -7 -6.5 V Note 2
TFT Common Voltage Vcom 3.0 3.3 4.7 V Note 1
AVDD Avdd -- 9.6 -- V Note 3







Product Image

High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface 2

High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface 3





High Brightness 10.1 Inch LCD Module 1024*600 Pixels 700 Nits Brightness RGB 24 BIT LCM Interface 4
