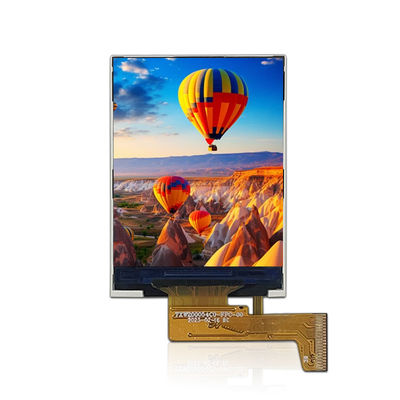

2 Inch 176*220 Resolution TFT Lcd Display Module With MCU 8 Bit Interface 39 PIN

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
guangdong shenzhen
Brand Name
TXWEI
Certification
ISO9001 IS014001 IATF16949
Model Number
TXW200054C0
Model Number:
TXW200054C0
Size:
2.0 Inch
Number Of Pixels:
176*220
Viewing Direction:
TN
Interface:
MCU 8 Bit 39 PIN
Brightness:
300nits
Active Area:
31.68*39.6(mm)
Outline Size:
36.6*49.5*2.22(mm)
Operating Temperature:
-20+70℃
Storage Temperature:
-30+80℃
Highlight:

2 Inch TFT Lcd Display Module

,

39 PIN TFT Lcd Display Module

Product Description

Product Name:2.0 Inch LCD Display Screen LCD TFT Module - Customized Factory



Product Description:

Introducing our high-performance 2.0 Inch LCD Display Screen, model TXW200054C0, designed for a variety of applications ranging from photography equipment to medical displays. This LCD TFT display module features a compact design with precise specifications, making it ideal for custom integration.



Key Specifications:



- Size: 2.0 inch

- Resolution: 176 x 220 pixels

- Display Angle: TN

- Interface: MCU 8 Bit, 39 PIN

- Display Chip: ILI9225G

- Brightness: 300 nits

- Display Area:31.68 x 39.6 mm

- Overall Dimensions:36.6 x 49.5 x 2.22 mm

- Operating Temperature: -20°C to +70°C

- Storage Temperature:-30°C to +80°C



This TFT-LCD liquid crystal display is manufactured in our Shenzhen LCD factory, ensuring quality and reliability. The LCD screen customization capabilities allow for tailored solutions to meet the specific needs of various industries, including remote controls, smart switch displays, digital cameras, music effect processors, dash cameras, handheld instruments, and others.



With our advanced technology, we also offer customers a wider range of display screen sizes, from 0.96-inch LCD screens to 32 inch LCD screens, and can even customize circular, square, and bar screens.



Whether you're developing a touchscreen interface or need a reliable LCD display screen for your next project, our 2.0 inch TFT display module is a robust choice that combines functionality and versatility.



In short, 2-inch 176 * 220 LCD screens are highly popular for their high resolution, high brightness, and wide range of applications. Whether used in industrial automation, medical equipment, car navigation, or consumer electronics, it can provide high-quality images and reliable performance. The optional touch screen function of this LCD screen also increases its value in interactive applications.

2 Inch 176*220 Resolution TFT Lcd Display Module With MCU 8 Bit Interface 39 PIN 0

2 Inch 176*220 Resolution TFT Lcd Display Module With MCU 8 Bit Interface 39 PIN 1

2 Inch 176*220 Resolution TFT Lcd Display Module With MCU 8 Bit Interface 39 PIN 2



Contact us today to learn more about our LCD TFT display screen options and how we can support your project with high-quality, customizable display solutions. Trust our expertise in the LCD manufacturing industry to deliver the best display technology for your needs!
