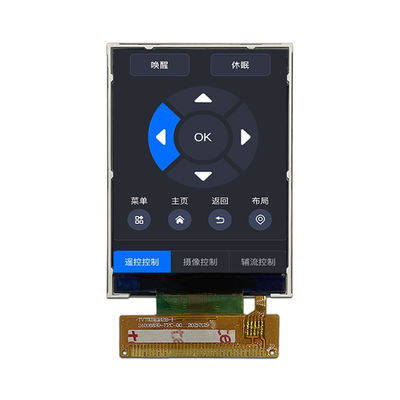

Product Name: TXW240088S0 2.4-inch TFT LCD Module
Product Overview:
TXW240088S0 is a 2.4-inch TFT LCD module designed and produced by Shenzhen Tianxianwei Technology Co., Ltd. This module is suitable for various electronic devices and application scenarios due to its high resolution, rich color rendering, and excellent display performance.
Product features:
Display specifications: 240xRGBx320 pixels, providing clear image and text display.
Driver IC: ST7789V2-G4-A from Sitronix is used to ensure stable performance and compatibility.
Color selection: Supports 65K/262K colors, software adjustable to meet different color requirements.
Backlight type: White LED backlight, providing uniform brightness and color.
Interface type: 16 bit MCU interface, convenient for connection and data transmission with microcontrollers.
Environmental adaptability: The working temperature range is -20 ° C to+70 ° C, and the storage temperature range is -30 ° C to+80 ° C, suitable for various environmental conditions.
Environmental requirements: Compliant with RoHS standards, lead-free materials and processing, protecting the environment.
Technical specifications:
Display type: full-color TFT LCD
Pixel arrangement: RGB stripe arrangement
Pixel spacing: 0.153 (H) x 0.153 (V) millimeters
Activity area: 36.72 (H) x 48.96 (V) millimeters
Perspective: All O'CLOCK
Module size: 42.72 (W) x 58.50 (H) x 2.15 (T) millimeters
Backlight system: 4 white LEDs, forward voltage 2.8V to 3.2V, forward current 80mA
Brightness: 550cd/m ² (typical value)
Uniformity: 80% (minimum value)
Operating temperature:- 20 ° C to+70 ° C
Storage temperature:- 30 ° C to+80 ° C
Humidity: 90% RH
Versatile applications: Whether it's photography equipment, remote controls, smart switches, digital cameras, music effects, driving recorders, etc., TXW200078B0 can perfectly adapt and showcase its outstanding performance.
Module Function Description
The module contains multiple pins for implementing different functions, including but not limited to:
GND: Power Ground
CS: Chip selection signal input pin
RS: Display data/command selection pin
WR: MCU parallel interface write enable
RD: Read data on the rising edge
DB0-DB15: MCU parallel interface data bus
RESET: Reset signal input terminal, low level valid
IOVCC: I/O power supply
VCC: Power supply, 2.5V to 3.3V
LEDK1-LEDK4: Power supply for backlight cathode input terminal
LEDA: Backlight anode input power supply
Electrical characteristics: Provides a stable supply voltage range, with I/O supply voltage ranging from 1.65V to 3.3V and DC/DC supply voltage ranging from 2.5V to 3.3V, ensuring stable operation of the module under different power supply conditions.
Reliability and lifespan: LEDs have a long lifespan of up to 30000 hours, which means longer maintenance cycles and lower replacement costs.
Technical support and services: Shenzhen Tianxianwei Technology Co., Ltd. provides professional technical support and customer service to ensure that customers can receive timely assistance during use.
Customized services: Based on customer needs, customized solutions may be provided, including dimensions, interfaces, and other features, to meet specific application requirements.
Shenzhen Tianxianwei Technology Co., Ltd. is committed to providing high-quality display solutions. The TXW240088S0 2.4-inch TFT LCD module, with its excellent performance and reliability, is the ideal choice for your electronic product display needs. For further product information or technical support, please contact our sales representative.
