| MOQ: | negotiate |
| Price: | negotiate |
| Standard Packaging: | cardboard |
| Delivery Period: | 16 |
| Payment Method: | L/C TT D/P |
| Supply Capacity: | 10000pcs |

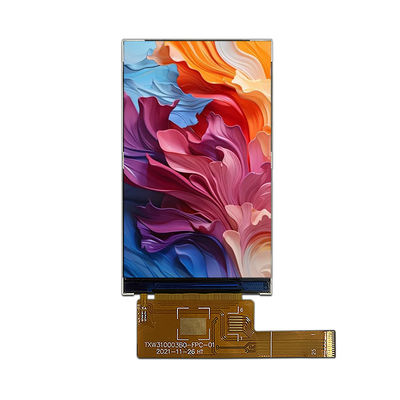

TXW310003B0 3.1-inch Industrial LCD Display Product Introduction
1,Core display performance
1.1 High definition IPS hard screen
Using a 3.1-inch 480 × 800 resolution panel (307PPI pixel density) and IPS wide viewing angle technology, it achieves:
Full viewing angle 178 ° visual range
2000:1 high contrast display
72% NTSC color gamut coverage
16.7 million color full-color display
1.2 Professional level optical parameters
400nits high brightness (typical value)
700:1 transmittance design
Support anti glare surface treatment (optional)
2,Industrial grade reliability design
2.1 Adaptability to harsh environments
Working temperature: -20 ℃~+70 ℃ (supports instantaneous peak value of 85 ℃)
Storage temperature:- 30℃~+80℃
Humidity tolerance: 95% RH non condensing environment
Anti vibration level: 5G acceleration (10-500Hz)
2.2 Interface and Driver Solutions
Equipped with ST7701S display driver IC
RGB 24 bit interface (54 pin FPC connector)
Supports PWM dimming (frequency range: 1K-50KHz)
Typical power consumption: 1.2W @ all white screen
3,Precision structural design
3.1 Compact packaging
Display area: 40.32 × 67.2mm (diagonal 79mm)
Overall dimensions: 43.48 × 74.72 × 1.74mm
0.5mm narrow border design
Support integration of capacitive/resistive touch screens
3.2 Installation Compatibility
Provide M2 specification installation hole positions
Customizable metal shielding cover
Support reverse/side mounted multi-directional installation
4,Typical application scenarios
4.1 Smart Home Field
Central air conditioning touch panel
Intelligent switch status display
Intelligent access control system interface
4.2 Industrial Control Scenarios
PLC control terminal
Instrument reading display
Automation equipment HMI
4.3 Application of Special Equipment
Car mounted driving recorder
Medical monitoring equipment
Outdoor handheld terminal
5,Technology value-added services
Provide OpenFrame/LCM modular supply
Support customized UI firmware development
Optional sunlight readable enhancement solution
Provide EMC/ESD protection solutions
This display module has passed RoHS and CE certification, and comes with a display testing kit and development documentation. It supports fast integration with mainstream embedded platforms (STM32/ARM/Linux). The typical production cycle is 8-10 weeks, and a tiered pricing plan can be provided according to customer needs.
Customized Process Suggestions
design drawing
product drawing
Tianxianwei was founded in 2014. The company has a Class 2000 dust-free workshop equipped with fully automated production equipment and high-quality production
Provide full-size product application solutions, support high-end high brightness product customization, and meet the needs of multiple industries. Having multiple intellectual property rights (including trademarks, patents, and software copyrights) and obtaining relevant qualification certificates and administrative licenses
