OEM MIPI interface 5-inch vertical LCD panel 720 * 1280 resolution 5-inch LCD display module

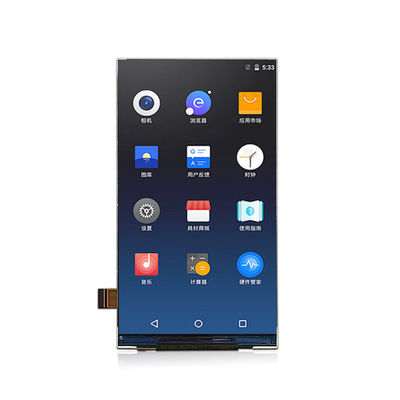

TXW500169B0 5.0-inch TFT LCD Display Screen: Lighting up the New Era of Smart Display

In today's era of accelerated digitization and intelligence, the performance and quality of display screens, as the core window for information exchange, directly affect the effectiveness and user experience of devices. The TXW500169B0 5.0-inch TFT LCD display screen launched by Shenzhen Tianxianwei Technology Co., Ltd. has become an ideal display solution in multiple fields such as power, medical, industrial, and testing due to its excellent display performance, stability, and wide applicability.

Product Overview: The Perfect Fusion of Technology and Art
TXW500169B0 is a 5.0-inch TFT LCD display screen that combines high resolution, high brightness, wide viewing angle, and low power consumption. It adopts IPS technology, providing ultra high definition resolution of 720 × 1280 pixels and 16.7M color display, ensuring delicate images and vivid colors. Supports 4Lane MIPI interface, which has become the top choice for modern display devices due to its high-speed data transmission and low power consumption characteristics. Whether it's handheld power devices, medical equipment, industrial equipment, or testing instruments, this display screen can easily handle them, bringing users an excellent visual experience.

Product features: See the real chapter for details

•  High resolution and clear display: making every pixel vivid and lifelike
• 720 × 1280 pixels: On a 5.0-inch screen, the high resolution of 720 × 1280 pixels ensures the delicacy and clarity of the image. Both complex graphical interfaces and high-definition videos can be presented in a high fidelity manner.
• RGB vertical stripe arrangement: This pixel arrangement effectively reduces color crosstalk, improves the color purity and clarity of the image, and makes the display effect sharper.
• 62.10mm × 110.40mm effective display area: This size meets the display needs of most devices and provides users with a wider visual space.

High brightness and wide viewing angle: Clear visibility anytime and anywhere

• TBD cd/m ² brightness: Even in strong light environments such as direct sunlight outdoors, users can still clearly see the content on the screen. This is crucial for applications such as car navigation and outdoor advertising machines.
• ALL O'CLOCK Perspective: Supports omnidirectional display, providing users with a good visual experience from any angle when viewing the screen, greatly enhancing the practicality of the product.

Advanced interface and driver technology: efficient transmission, stable operation

• 4Lane MIPI interface: The MIPI interface, with its high-speed serial data transmission and low pin count, effectively reduces wiring complexity and cost. Meanwhile, its high-speed data transmission capability ensures stable and smooth transmission of image signals, avoiding issues such as image lag and delay.
• JD9365DA-H3 driver chip: This high-performance TFT LCD driver IC has rich functions and excellent performance. It supports multiple display modes, such as normal display, sleep mode, etc., to meet the needs of different application scenarios. In addition, it also has good stability and reliability, which can ensure the normal operation of the display screen in various complex environments.

Environmental adaptability and reliability: fearless of challenges, stable as one

• Working temperature -20 ° C to 70 ° C: This broad working temperature range enables the product to adapt to various extreme environments, whether it is cold northern winters or hot southern summers, and can operate stably.
• Storage temperature -30 °C to 80 °C: Ensure that the performance and quality of the product are not affected during long-term storage.
• Humidity adaptability: The working humidity is ≤ 90% RH, which can meet the climate conditions of different regions and prevent electronic component damage and short circuits caused by high humidity.
• Compliant with RoHS standards: It reflects the company's sense of responsibility for environmental protection and provides users with safer and healthier products.

Compact design and flexible integration: compact size, powerful functionality

• Dimensions: The LCM dimensions are 65.40mm (width) x 119.30mm (height) x 1.7mm (thickness). This compact design allows it to be easily embedded into various devices, saving space while maintaining the overall aesthetics of the device.
• Low power design: The working voltage is 2.5-3.3V, and the low-power characteristics make the product particularly suitable for devices that require high battery life, such as tablets, smartphones, etc., which can effectively extend the device's usage time.

Application field: infinite possibilities, blooming everywhere

• Electric handheld instrument: precise monitoring, efficient operation and maintenance
• High resolution and clear display: The high resolution of 720 × 1280 pixels ensures the clear presentation of complex data and graphics, whether it is waveform diagrams, parameter tables, or real-time monitoring data, they can all be seen at a glance.
• High brightness and wide viewing angle: The brightness and omnidirectional display characteristics of TBD cd/m ² ensure that the screen content is still clear and visible in strong light environments, such as outdoor inspections, making it convenient for power workers to quickly obtain information.
• Low power design: The low-power characteristics of 2.5-3.3V extend the battery life of handheld instruments, improving the portability and practicality of the device.

Medical equipment and instruments display: precise diagnosis, safeguarding health

• High resolution and color performance: 16.7M color display and 720 × 1280 pixel high resolution ensure the delicacy and color accuracy of medical images, helping medical staff to observe and analyze ultrasound images, electrocardiograms, and other data more accurately.
• High brightness and wide viewing angle: Under different lighting conditions such as operating rooms and monitoring rooms, the brightness and wide viewing angle design of TBD cd/m ² ensure that medical staff can clearly see the screen content from different angles and make timely diagnosis and treatment decisions.
• Stability and anti-interference ability: The display screen has good stability and anti-interference ability, and can operate reliably in complex medical environments, ensuring the accuracy of data and the stability of equipment.

Industrial equipment display: precise monitoring, efficient production

• High resolution and clear display: The 720 × 1280 pixel high resolution ensures clear display of real-time data and system status, helping operators quickly identify and solve problems and improve production efficiency.
• High brightness and wide viewing angle: The TBD cd/m ² brightness and wide viewing angle design ensure that screen content remains clear and visible under various lighting conditions in industrial environments.
• Environmental adaptability: The display screen can operate stably within a wide temperature range of -20 ° C to 60 ° C, adapting to high and low temperatures and humidity changes in industrial environments.

Testing instrument display: fast response, precise measurement

• Fast response and high resolution: The display screen has a fast electro-optical response time and can display changes in measurement data in real time. The high resolution of 720 × 1280 pixels ensures clear presentation of complex data and graphics.
• High brightness and wide viewing angle: In laboratory or on-site testing, the brightness and wide viewing angle design of TBD cd/m ² ensure that screen content is clearly visible under different lighting conditions, making it convenient for operators to quickly read data.
• Stability and reliability: The display screen has good stability and anti-interference ability, and can operate reliably in complex detection environments, ensuring the accuracy of measurement data and the stability of the equipment.
