High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display

MOQ: 1pcs
Price: negotiations
Standard Packaging: Box packaging
Delivery Period: 5-8day
Payment Method: L/C, T/T
Supply Capacity: 100000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
ISO9001 IS014001 IATF16949
Model Number
TXW096006S1
Highlight:

High brightness bar screen LCD display

,

SPI interface bar screen LCD display

,

0.96 inch bar screen LCD display

Product Description

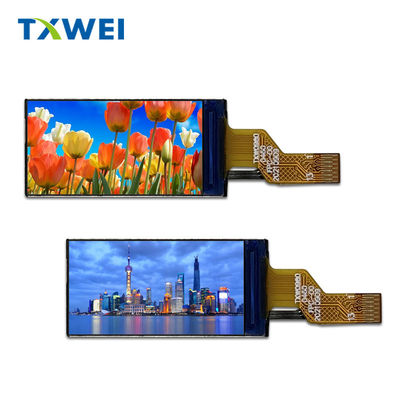

Industrial grade 0.96-inch strip TFT LCD display module description


As an emerging display technology, stripe IPS LCD screens have gradually attracted the attention of users due to their unique advantages and wide application scenarios. The panoramic visual effect is more comfortable. At the same time, this design also makes the screen more ergonomic and easier to use. Adopting a high-definition IPS LCD screen can present more detailed and realistic visual effects, as well as enhance the user's visual experience. The advantage of a bar shaped IPS LCD screen is low energy consumption, which means it generates less heat during operation and does not require large heat sinks, thereby reducing energy waste and environmental pollution.


TXW096006S1 is a 0.96-inch TFT module with 80 * 160 resolution IPS technology. This circular TFT LCD is equipped with IC ST7735 and supports SPI 4-bit interface. Customizable multi-point PCAP touch screen supporting I2C interface. Its multi touch functionality and excellent visual performance make it an ideal choice for demanding applications.


This display combines cutting-edge display technology, powerful performance, and multifunctional compatibility, making it the best solution for various automotive, industrial, medical, and smart home applications.





Features


-Low Input Voltage: VDD: 2.8~3.3V;

-Display Colors of TFT LCD: 16.7M colors

-CPU Interface: -SPI 4 BIT Interface

-Internal Power Supply Circuit.



General Information Items Specification Unit
Display area(AA)

10.8(H) * 21.7(V) -(0.96inch)

 mm
Driver element a-Si TFT active matrix -
Display colors 16.7M colors
Number of pixels

80*3RGB(H)X160(V)

 dots
Pixel arrangement RGB vertical stripe -
Pixel pitch

0.135*0.1356

 mm
Viewing angle ALL o'clock
Drive IC

ST7735

 -
Color Pixel Arrangement RGB vertical stripe -
Display mode Transmissive/ Normally Black -
Operating temperature

-20+70

 ℃
Storage temperature

-30+80

 ℃





Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 1 white LEDs. The characteristics of the back-light are shown in the following tables.



Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 2.8 -- 3.2 V --
Forward current IF -- 20 -- mA --
Luminance(With LCD) Lv -- 600 -- cd/m2 --
LED life time N/A -- 30,000 -- Hr Note 1





Industrial grade 0.96-inch strip TFT LCD display module diagram

High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display 0

High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display 1





Back-Light Unit Characeristics

1 NC No Connection.
2 NC No Connection.
3 SDA input/output signal pin
4 SCL Synchronous clock signal pin
5 RS Display data/command selection pin
6 RESET Reset signal input terminal. Active at ‘L’.
7 CS

Chip select signal input pin
8 GND Gound
9 NC No Connection.
10 VDD PINPOWER SUPPLY(2.8-3.3V)
11 LEDK Power supply for backlight cathode input terminal.
12 LEDA Power supply for backlight anode input terminal.
13 GND Gound



Reliability Test Item

No. Test Item Test Condition Notes
1 High Temp. Storage +70°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.




2 Low Temp. Storage -20°C / 96H
3 High Tempe. Operating +60°C / 96H
4 Low Tempe. Operating -10°C / 96H
5 High Temperature /Humidity storage 50°C x 90%RH /96H
6 Thermal and cold shock Static state, -10℃(30min) ~60℃ (30min),10 cycles





Industrial grade 0.96-inch strip TFT LCD display module product picture



High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display 2



High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display 3



High Brightness Bar Screen LCD Display 0.96 Inch 80*160 SPI Interface Bar Screen Display 4







Advantages of Tianxianwei Display Screen: Bar Screen, High Brightness, High Quality, Over 10 Years of Supply
