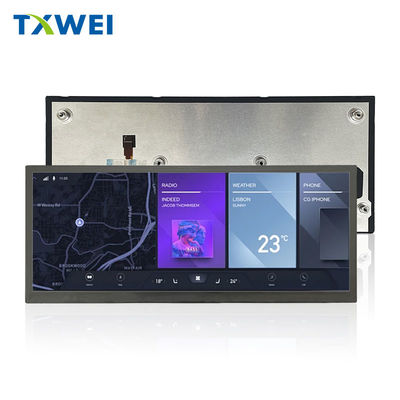

IPS TFT LCD Screen 10.25 Inch FHD LVDS Display Product Introduction
A 10.25-inch FHD LVDS display module typically refers to a liquid crystal display with a 1920 * 720 full HD resolution, featuring a 10.25-inch IPS TFT LCD panel and an enhanced display interface (LVDS). Here are some key product features and parameters of TXW103002S0:
| General Information Items | Specification | Unit |
| Display area(AA) |
243.648*91.368 |
mm |
|
Mechanical OutlineSize(W*H*T) |
258.8*111.1*7.55 |
mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 16.7M | colors |
| Number of pixels |
1920*720 |
dots |
| Pixel arrangement | RGB vertical stripe | - |
| Pixel pitch |
0.13269*0.13269 |
mm |
| Viewing angle | ALL | o'clock |
|
Lcm pin n count |
50pin |
pin |
| Color Pixel Arrangement | RGB vertical stripe | - |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature |
-30+85 |
℃ |
| Storage temperature |
-40+90 |
℃ |
Product Drawing
Interface Pin Definition
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 36 white LEDs. The characteristics of the back-lightare shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 27.9 | -- | 29.7 | V | -- |
| Forward current | IF | -- | 300 | -- | mA | -- |
| Luminance(With LCD) | Lv | 750 | 1000 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 20,000 | -- | Hr | Note 1 |
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +90°C / 96H |
1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
|
| 2 | Low Temp. Storage | -40°C / 96H | |
| 3 | High Tempe. Operating | +85°C / 96H | |
| 4 | Low Tempe. Operating | -40°C / 96H | |
| 5 | High Temperature /Humidity storage | 60°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -40℃(30min) ~85℃ (30min),10 cycles |
Product Image
