2.86" TFT 376x960, TFT LCD 2.86 inch Description
The TXW286003B0 TFT LCD module is a vertical mode QVGA 376 × 960 full-color display with a diagonal size of 2.86 inches. The TXW286003B0 LCD module supports MIPI 2 LANE interface. The cover plate/cable/touch can be customized. The module size of TXW286003B0 model is 31.2 * 76.6 * 2.05mm, with an effective area of 26.51 * 67.68 mm.
TXW286003B0 integrates ST7701SN or equivalent driver IC controller on the module, with a logic power supply voltage range of 5.6V to 6.4V. The typical value is 5.6V. The surface brightness is 600cd/m2 (Nits). The operating temperature of this model is -20 to 70 degrees Celsius, and the storage temperature is -30 to 80 degrees Celsius.
This model has been widely used in products such as reading pens, smart musical instruments, water purifiers, coffee makers, ovens, speakers, handheld devices, etc.
Product Quick Details:
1. LCD Size: 2.86” TFT
2. Resolution: 376*960
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 31.2*76.6*2.05mm
5. Active area: 26.51*67.68
6. Interface Type: MIPI 2 LANE
7. Touch Panel: Without Touch Panel(Customizable)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
| Product: | 2.86" Inch TFT | Touch Screen: | Without TP(Customizable) |
| Resolution: |
376*960 |
Viewing Direction: | 12 O'clock |
| Interface: |
MIPI 2 LANE |
Pin Number: | 40 Pins |
| Connection: | Plugging (customizable) | Surface Luminance: | 600 Cd/m2 |
| Operating Temp: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.High quality level for industrial and medical applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Price competitive solution with good quality among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.
2.86" inch TFT LCD Display Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +70 | °C |
| LCM Storage Temperature | TSTG | -30 | +80 | °C |
| Humidity | RH | - | 90 | % |
TFT DC Characteristics
| Characteristics | Symbol | Min. | Typ. | Max. | Unit |
| Supply Voltage for I/O | VDDIO | 1.65 | 3.3 | 3.3 | V |
| Supply Voltage for(DC/DC) | VDD | 2.6 | 3.3 | 3.3 | V |
| Current Consumption | IDD | -- | -- | 50 | mA |
| IDD-SLEEP | -- | -- | 150 | uA |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 4 white LEDs. The characteristics of the back-light
are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 11.2 | 13.2 | V | - | |
| Forward current | IF | -- | 40 | - | mA | - |
| Luminance(With LCD) | Lv | 600 | cd/m2 | - | ||
| LED life time | N/A | ---- | 30,000 | -- | Hr | Note 1 |
Module Function Description
| Pin No. | Symbol | LCM Functional | Notes |
| 1 | GND | Power Ground | |
| 2 | MIPI_0P | Positive polarity of low voltage differential data 3 signa | |
| 3 | MIPI_0N | Negative polarity of low voltage differential data 3 signal | |
|
4 |
GND | Power Ground | |
| 5 | MIPI_1P | Positive polarity of low voltage differential data 3 signa | |
| 6 | MIPI_1N | Negative polarity of low voltage differential data 3 signal | |
| 7 | GND | Power Ground | |
| 8 | CLKP | Positive polarity of low voltage differential clock signal | |
| 9 | CLKN | Negative polarity of low voltage differential clock signal | |
| 10 | GND | Power Ground | |
| 11 | MIPI_2P(NC) | NC | |
| 12 | MIPI_2N(NC) | NC | |
| 13 | GND | Power Ground | |
| 14 | MIPI_3P(NC) | NC | |
| 15 | MIPI_3N(NC) | NC | |
| 16~17 | GND | Power Ground | |
| 18~19 | IOVCC3.3V | Power supply I/O : 1.65V ~ 3.3V | |
| 20~21 | ID0~ID1 | The MCU interface mode select | |
| 22~23 | NC | NC | |
| 24 | RESET | Reset signal input terminal. Active at ‘L’. | |
| 25~26 | NC | NC | |
| 27 | GND | Power Ground | |
| 28~29 | LEDK | Power supply for backlight cathode input terminal. | |
| 30 | GND | Power Ground | |
| 31 | NC | NC | |
|
32~33 |
GND | Power Ground | |
| 34 | NC | NC | |
| 35~36 | LEDA | Power supply for backlight anode input terminal. | |
| 37 | GND | Power Ground | |
| 38~39 | VCC 3.3V | Power Supply For LCD. | |
| 40 | NC | NC |
Optical Characteristics

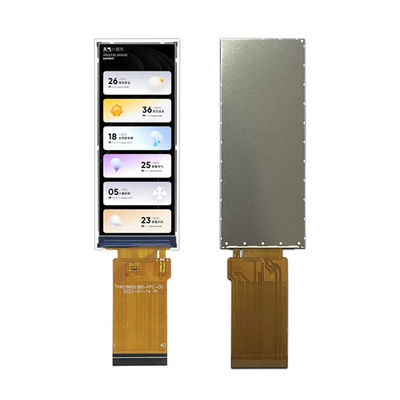

2.86" INCH TOUCH LCD MODULE REAL PRODUCT IMAGE
Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.
Video
Video
Video
Video
|
|
