MCU 2.86 inch TFT LCD, 2.86"376*960 HVGA LCD Display Description
TXW286005B0 is a 2.86-inch diagonal TFT LCD module with a resolution of HVGA 376*960 pixels
Product Quick Details:
1. LCD Size: 2.86” TFT
2. Resolution: 376*960
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 31.2*76.6*2.05mm
5. Active area: 26.51*67.68
6. Interface Type: RGB24 BIT Interface
7. Touch Panel: Without Touch Panel(Customizable)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
Product features:
1.TXW286005B0 is a 3.5-inch diagonal size, 376xRGBx960 full-color TFT LCD display.
2. This module supports RGB interfaces. The module size of TXW286005B0 model is 31.2 * 76.6 * 2.05mm, with an effective area of 26.51 * 67.68mm;
3.TXW286005B0 and ST7701SN controller are integrated on the module, with a logic power supply voltage range of 2.8V to 3.3V.
4. Can operate within a temperature range of -20 ℃ to+70 ℃; Its storage temperature range is -30 ℃ to+80 ℃.
5.TXW286005B0 is a vertical mode LCD module with a brightness of 300cd/m2. If you want to use it as landscape mode or increase brightness, please contact us for more technical support.
This 2.86-inch TFT LCD module is suitable for products such as reading pens, smart musical instruments, water purifiers, coffee makers, ovens, speakers, handheld devices, etc.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
| Product: | 2.86" Inch TFT | Touch Screen: | Without TP(Customizable) |
| Resolution: |
376*960 |
Viewing Direction: | 12 O'clock |
| Interface: |
RGB 24 BIT Interface |
Pin Number: | 40 Pins |
| Connection: | Plugging (customizable) | Surface Luminance: | 300 Cd/m2 |
| Operating Temp: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
MCU 2.86 inch TFT LCD, 2.86" 376x960 HVGA LCD Display Drawing
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 4 white LEDs. The characteristics of the back-light
are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 2.8 | -- | 3.2 | V | -- |
| Forward current | IF | -- | 80 | -- | mA | -- |
| Luminance(With LCD) | Lv | -- | 250 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 30,000 | -- | Hr | Note 1 |
TFT DC Characteristics
| Characteristics | Symbol | Min. | Typ. | Max. | Unit |
| Supply Voltage for I/O | VDDIO | 1.65 | 1.8 | 3.3 | V |
| Supply Voltage for(DC/DC) | VDD | 2.6 | 2.8 | 3.3 | V |
| Current Consumption | IDD | -- | -- | 50 | mA |
| IDD-SLEEP | -- | -- | 150 | uA |
Module Function Description
| Pin No. | Symbol | LCM Functional | Notes |
| 1~2 | LEDA | Power supply for backlight anode input terminal. | |
| 3~4 | LEDK | Power supply for backlight cathode input terminal. | |
| 5 | GND | Power Ground | |
| 6 | RESET | Reset signal input terminal. Active at ‘L’. | |
| 7 | CS | Chip selection signal. | |
| 8 | SCL | Serial clock signal. | |
| 9 | SDA | Serial data input/output pin. | |
| 10~33 | D0~D23 | RGB interface data bus. | |
| 34 | HSYNC | Line synchronous signal for RGB interface operation. | |
| 35 | VSYNC | Frame synchronous signal for RGB interface operation. | |
| 36 | DCLK | Dot clock signal for RGB interface operation. | |
| 37 | DE | Data enable signal for RGB interface operation. | |
| 38 | VCC | Power Supply For LCD. | |
| 39 | IOVCC | Power Supply For I/O. | |
| 40 | GND | Power Ground |
Optical Characteristics

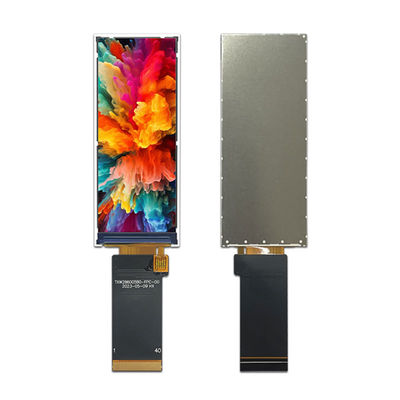

2.86" INCH TOUCH LCD MODULE REAL PRODUCT IMAGE
