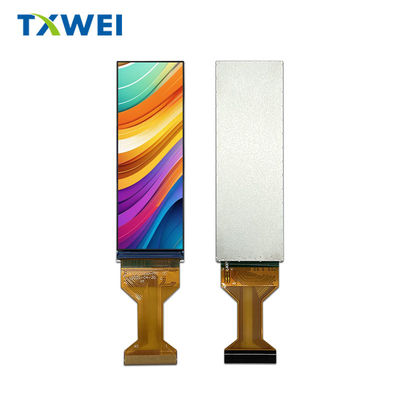

Custom 3.0inch TFT LCD Display 268x800 Dots ST7701S RGB Interface

3.0" Inch TFT Custom LCD, IPS 268*800 Pixels LCD Description

TXWEI 300059S0 is a diagonal size 3.0” inch TFT LCD module with resolution 268x800 pixels. This module is built in with ST7701S IC; it includes the controller and driver IC functions, supports RGB interface, and supply voltage (Vdd) range 18V.  This module viewing direction is IPS type free viewing angle(85/85/85/85).

300059S0 TFT LCD module is portrait mode with brightness 350 nits. The module also is available for newly design a Resistive Touch Screen and Projected Capacitive Touch Screen. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 3.0” inch TFT LCD module is widely used in Student reading pen display, household appliance display, musical instrument product display and other products

Product Advantages

1. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
2. Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
3. Stable Supply for continuous mass production of over 5 years. No EOL worry.
4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well.
5. FPC is customizable to have different interface, pin number and pin assignment, etc.
6. Low-cost solution among the same kinds in the LCD industry.
7. Easy to install and easy to maintain.

Product Quick Details:

1. LCD Size: 3.0” TFT

2. Resolution: 268*800

3. Viewing Angle: 12 O’clock

4. Outline Dimension: 26.52*78.75*1.65mm

5. Active area: 24.12*72mm

6. Interface Type: RGB 16 BIT Interface

7. Touch Panel: Without Touch Panel(Customizable)

8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

RGB 3.0 inch TFT LCD, 3.0" 268×800 HVGA LCD Display Drawing

Module Function Description

Optical Specification

Reliability Test Item
