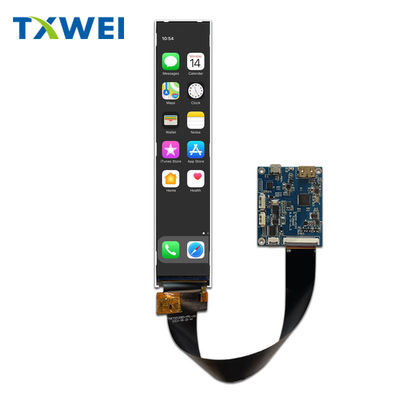

6.9 Inch 280*1424 Resolution Full Color TFT LCD Display Module with HDMI LCM interface

Products

6.9 Inch 280*1424 Resolution Full Color TFT LCD Display Module with HDMI LCM interface

MOQ:	Negotiate
Price:	Negotiate
Standard Packaging:	Cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW700120B0-HDMI

Document

Active Area:

33.6(H) X 170.88(V)

Viewing Direction:

ALL O’CLOCK

Lumens Degrees:

500cd/㎡

Drive Element:

TFT Active Matrix

Pixel Arrangement:

RGB Stripe

LCD Type:

Normally Black

LCM Interface:

Mechanical OutlineSize(W*H*T):

38.2(W) ×181.47(H) ×3.45(T)

Product Description

Product Description:

The HDMI Driver Board is a versatile and essential component for enhancing the functionality of your display devices. Designed to optimize the performance of LCD panels, this product delivers exceptional audio and video quality through its HDMI audio driver capabilities.
One of the key features of the HDMI Driver Board is its compatibility with LCD panels of the Normally Black type. This ensures seamless integration with a wide range of displays, enabling consistent and high-quality output. Whether you are upgrading an existing device or building a new display system, the HDMI Driver Board offers the reliability and performance you need.
With a storage temperature range of -30 to +80℃, this HDMI conversion board is built to withstand varying environmental conditions, making it suitable for use in diverse settings. Whether installed in indoor or outdoor environments, you can rely on the durability and resilience of the HDMI Driver Board to deliver consistent performance.
The HDMI Driver Board supports a viewing direction of ALL O’CLOCK, ensuring that the display output is optimized for viewing from various angles. This versatility makes it ideal for applications where the display may be viewed from different positions, providing a clear and crisp image regardless of the viewing angle.
Utilizing a Pixel arrangement of RGB Stripe, the HDMI Driver Board ensures vibrant and accurate color representation, enhancing the visual experience for users. Whether displaying images, videos, or graphics, this product delivers sharp and detailed visuals with true-to-life colors, making it ideal for multimedia applications.
Featuring an LCM interface of HDMI, the HDMI Driver Board enables seamless connectivity with a wide range of devices, allowing for easy integration into existing display setups. With support for HDMI input, this conversion board simplifies the process of connecting various multimedia sources to your display, providing a hassle-free solution for audio and video transmission.
In conclusion, the HDMI Driver Board is an essential component for enhancing the audio and video capabilities of your display devices. With its compatibility with Normally Black LCD panels, wide storage temperature range, versatile viewing direction, RGB Stripe pixel arrangement, and HDMI LCM interface, this product offers the performance and reliability you need for your display applications. Upgrade your display systems with the HDMI Driver Board and experience superior audio and video quality with ease.

Customization:

Product Customization Services for HDMI Driver Board:

Brand Name: TXWEI

Model Number: TXW700120B0-HDMI

Place Of Origin: Shenzhen

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16

Payment Terms: L/C TT D/P

Supply Ability: 10000pcs

Voltage: 5V

LCM Interface: HDMI

Active Area: 33.6(H) X 170.88(V)

Pixel Pitch (W*H): 0.1432(H) X 0.1432(V)

Storage Temperature: -30+80℃

Product drawings

6.9 Inch 280*1424 Resolution Full Color TFT LCD Display Module with HDMI LCM interface 0

HDMI drawings

6.9 Inch 280*1424 Resolution Full Color TFT LCD Display Module with HDMI LCM interface 1

Module Function Description

Pin No.	Symbol	LCM Functional	Notes
1	GND	Ground.
2	NC	No Connection.
3	LEDA	Power Supply For LED Backlight Anode Input.
4	LEDA	Power Supply For LED Backlight Anode Input.
5	NC	No Connection.
6	LEDK	Power supply for backlight cathode input terminal.
7	LEDK	Power supply for backlight cathode input terminal.
8	NC	No Connection.
9	GND	Ground.
10	NC	No Connection.
11	NC	No Connection.
12	NC	No Connection.
13	NC	No Connection.
14	NC	No Connection.
15	NC	No Connection.
16	NC	No Connection.
17	GND	Ground.
18	NC	No Connection.
19	GND	Ground.
20	GND	Ground.
21	RESET	Reset Signal input pin.
22	VDD	Power Supply For LCD.
23	STBYB	Standby mode, Normally pulled high. STBYB = “1”, Normal operation STBYB = “0”, Enter standby mode for power saving.
24	NC	No Connection.
25	GND	Ground.
26	D0P	Positive polarity of low voltage differential data 0 signal
27	D0N	Negative polarity of low voltage differential data 0 signal
28	GND	Ground.
29	D1P	Positive polarity of low voltage differential data 1 signal
30	D1N	Negative polarity of low voltage differential data 1 signal
31	GND	Ground.
32	CLKP	Positive polarity of low voltage differential clock signal
33	CLKN	Negative polarity of low voltage differential clock signal
34	GND	Ground.
35	D2P	Positive polarity of low voltage differential data 2 signal
36	D2N	Negative polarity of low voltage differential data 2 signal
37	GND	Ground.
38	D3P	Positive polarity of low voltage differential data 3 signal
39	D3N	Negative polarity of low voltage differential data 3 signal
40	GND	Ground.

Support and Services:

The Product Technical Support and Services for the HDMI Driver Board product include:

- Troubleshooting assistance for hardware and software issues related to the HDMI Driver Board
- Guidance on installation, setup, and configuration of the board
- Firmware updates and compatibility information
- Warranty information and support for product defects
- User manuals and documentation for reference and assistance
