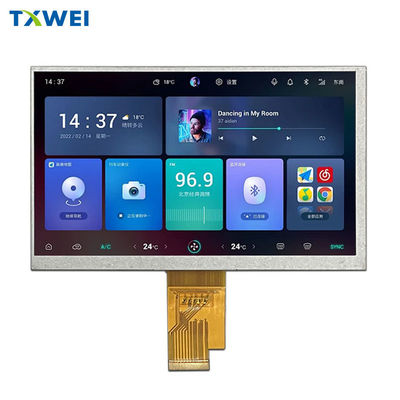

7-inch Car Navigation LCD Screen 1024 * 600 Brightness 450cd/m2 Motorcycle Instrument Panel

MOQ: 1
Price: negotiations
Standard Packaging: Cardboard
Delivery Period: 16
Payment Method: L/C,D/P,D/A,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW700079N0
Document
TXW700079N0-SPEC.pdf
LCM Interface:
LVDS Bit Interface
Size:
7.0inch
Mechanical OutlineSize(W*H*T):
164.9*100*3.5
Pixel Arrangement:
RGB Stripe
Operating temperature:
-30+85℃
Number Of Pixels:
1024*600
Lcm Pin N Count:
40pin
Highlight:

Car Navigation LCD Screen

,

450cd/m2 Motorcycle LCD Screen

,

Motorcycle Instrument Panel LCD Screen

Product Description
TXW700079N0 7.0 "Industrial Wide Temperature High Brightness TFT-LCD Module
——High reliability, full view angle, and sunlight visible display core
1, Product positioning
TXW700079N0 is a 7.0-inch TFT-LCD display module designed, produced, and tested independently by Shenzhen Tianxianwei Technology Co., Ltd. It is designed for harsh environments such as automotive, industrial control, medical, and outdoor use. This module achieves 450 cd/m ² high brightness output at a resolution of 1024 × 600, and brings the ALL O'CLOCK full view experience through IPS technology. The working temperature is -30 ℃~+85 ℃, and the storage temperature is also -30 ℃~+85 ℃, truly meeting the triple requirements of "wide temperature+high brightness+full view".
2, Core Highlights
IPS Full View: No color deviation or grayscale reversal at any angle, suitable for motorcycle instruments, in car central control, and other scenes that require side view.
High brightness 450 cd/m ²: still clear and readable under direct sunlight outdoors, reducing the cost of shading structures.
Wide temperature design: -30 ℃ cold start,+85 ℃ long-term operation, has passed reliability verification such as 96 hours of high and low temperature storage/operation, and 10 cycles of cold and hot shock.
99.7% shipment yield: Tianxianwei Technology has built its own full temperature aging line, AOI automatic optical inspection, and ISO9001 quality control system to ensure batch consistency.
Full technical support: providing one-stop technical services from interface matching, EMC rectification, structural drilling to after-sales failure analysis.

Features:

  • Product Name: HDMI TFT LCD Display
  • Number of pixels: 1024*600
  • Storage temperature: -30 to +85℃
  • Viewing direction: ALL O’CLOCK
  • LCM interface: LVDS Bit Interface
  • LCM Driver IC: HX8282A11



Project SpecificationDescription
Size7.0 inches16:9 golden ratio
ResolutionPixel 1024 × RGB × 600Pixel Density 169 PPI
Display type Normally BlackHigh contrast, low light leakage
Pixel arrangement RGB vertical stripesColor reproduction for realism|
Effective display area154.21 × 85.92 mm Diagonal 7.0
Dimensions164.9 × 100 × 3.5 mmUltra thin for easy embedded installation
Driver IC HX8282A11Mature solution with complete documentation
Interface 40 Pin LVDS8-bit color depth, strong anti-interference
Backlight scheme30 pcs high brightness white LED Side input light, uniformity ≥ 80%
Backlight power supply 8.9-10 V/200 mASupports PWM dimming
Brightness450 cd/m ² Typical value, customizable to 600 cd/m ²
Working temperature -30 ℃~+85 ℃Industrial grade
Storage temperature-30 ℃~+85 ℃No condensation


Applications:

The TXWEI TXW700079N0 TFT LCD Display is a versatile product that can be used in various application occasions and scenarios. Its high-quality display and advanced features make it an ideal choice for a wide range of purposes.
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc
Another popular application occasion for this display is in HDMI TFT LCD Display setups. The TXWEI TXW700079N0 model offers HDMI connectivity, allowing it to be easily integrated into HDMI systems for use in various settings such as conference rooms, retail stores, and entertainment venues.
Thanks to its certification in CE, ROHS, and FCC, the TXWEI TFT LCD Display ensures high quality and compliance with international standards. This makes it a reliable choice for businesses and organizations looking for a trustworthy display solution.
With a minimum order quantity of 1 and packaging details in cardboard, the TXWEI TFT LCD Display is convenient for both small-scale and large-scale orders. Its short delivery time of 16 days and supply ability of 10000pcs further enhance its appeal to customers with varying requirements.
The mechanical outline size of 164.9*100*3.5 makes the display compact yet visually impressive. The storage temperature range of -30 to +85℃ ensures durability and reliability in different environmental conditions.
The active area of 154.21(H) * 85.92(V) and pixel pitch of 0.1506*0.1432 contribute to the display's high resolution and sharp image quality, making it suitable for displaying detailed content with clarity.

Customization:

Product Customization Services:
- Brand Name: TXWEI
- Model Number: TXW700079N0
- Place Of Origin: Shenzhen
- Certification: CE ROHS FCC
- Minimum Order Quantity: 1
- Packaging Details: Cardboard
- Delivery Time: 16
- Supply Ability: 10000pcs
- Number of pixels: 1024*600
- LCM interface: LVDS Bit Interface
- Viewing direction: ALL O’CLOCK
- Pixel Pitch (W*H): 0.1506*0.1432

Support and Services:

Our company provides comprehensive Product Technical Support and Services for our TFT LCD Display product. Our team of experts is available to assist with any technical inquiries, troubleshooting, and product-related issues. We offer timely support to ensure that our customers have a seamless experience with our products.
