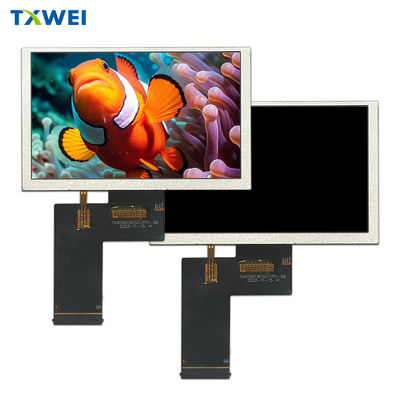

High Brightness 5.0-inch 800 * 480IPS Outdoor LCD Display Module with Mechanical OutlineSize 120.7*75.8*2.8

Product Description:

1. Outdoor, the three things that display screens are most afraid of are: too bright sun, too cold or too hot temperature, and too harsh environment. TXW500180B0 solves these three things at once: 1200 cd/m ² ultra-high brightness makes it clear and readable even under direct sunlight; -Industrial grade wide temperature range of 30 ℃~+85 ℃, capable of stable operation from snowy plains in the north to scorching deserts; 2.8mm ultra-thin body+full view IPS, making it worry free for both structural designers and end users
2.  Outdoor test scenario
   At 12:00 noon, the surface temperature in Guangzhou is 38 ℃: the screen brightness automatically reaches 100%, and there is no reflection when taking photos.
   Mohe -25 ℃ cold chain vehicle: lights up after 3 seconds of cold start, with no trailing image on the LCD.
   Hainan 90% RH salt spray box for 48 hours: no corrosion on the surface, no attenuation of backlight.
   Off road motorcycle continuously vibrates for 2 hours: the wiring is not loose and the display screen is not flashing.
   3, Industry application speed matching
   Two wheeled/three wheeled vehicle instrument panel - integrated screen for speed, battery, and navigation, eliminating mechanical pointers.
   ETC/charging station - readable under sunlight, scan code for payment once successful.
   Cold chain monitoring - real-time temperature and humidity display of the carriage at -20 ℃, with full traceability throughout the process.
   Construction machinery - excavator, aerial work platform operation panel, anti glare, anti fingerprint.
   Outdoor advertising machine/delivery cabinet -24-hour unmanned operation with zero maintenance.
   4, Development friendliness
   Standard 50 pin RGB 24 bit interface, compatible with mainstream motherboards such as STM32, RK, NXP, etc.
   Provide Linux/Android drivers, 2D/3D architecture diagrams, and EMC improvement guidelines.
   Optional capacitor/resistor touch, optical bonding, cover reinforcement, one-stop delivery.
   5, Quality and Service
   99.7% shipment yield rate; ISO9001+IATF16949 dual system control.
   24 month warranty, Shenzhen headquarters and Jiangsu branch.

Technical Parameters:

Applications:

TXW500180B0, with its triple characteristics of ultra-high brightness of 1200 cd/m ², IPS full view angle, and wide temperature range of -30 ℃ to+85 ℃, is capable of handling the following typical outdoor scenarios:
Strong direct sunlight environment
Electric and motorcycle dashboard under noon sunlight
Highway ETC display screen, outdoor charging pile UI
Extreme temperature scenario
30 ℃ Cold Chain Logistics Carriage Monitor
Unmanned equipment exposed to+85 ℃ sunlight (express cabinets, advertising machines)
Rainy and snowy high humidity environment
Central control/rear view screen for all-weather construction vehicles (excavators, forklifts)
Port and dock crane operation terminals
Vibration/impact scenarios
Off road motorcycles, snowmobiles, ATV instruments
Outdoor inspection drone ground station
Summary: For outdoor equipment that requires "readability under sunlight, wide temperature operation, and high reliability", TXW500180B0 can be directly embedded without additional shading or heating design.

Customization:

Product Customization Services for TFT LCD Monitor Screen:

Brand Name: TXWEI

Model Number: TXW500180B0

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16

Payment Terms: L/C TT D/P

Supply Ability: 10000pcs

Viewing direction: ALL O’CLOCK

Lcm pin n count: 50pin

LCM interface: RGB 24 BIT Interface

Lumens degrees: 1200cd/㎡

Keywords: LCD TFT Display Panel, TFT LCD Display Module

 Conclusion:

If you are looking for a 5-inch outdoor screen that is not afraid of sun exposure, cold, or earthquakes, the TXW500180B0 is ready - leaving extreme environments to nature and clear visibility to users.
