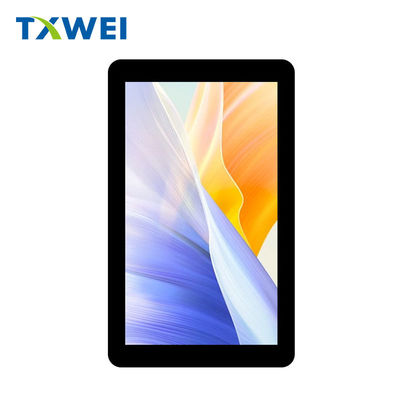

5.5-inch 1080 * 1920 IPS 2000 Brightness Handheld PDA Display Screen With Touch Screen Structure G FF LCM Driver IC HX8399C

Products

5.5-inch 1080 * 1920 IPS 2000 Brightness Handheld PDA Display Screen With Touch Screen Structure G FF LCM Driver IC HX8399C

MOQ:	Negotiate
Price:	Negotiate
Standard Packaging:	Cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW550037N0-SN

Document

Operating temperature:

-20+60℃

Touch Driver IC:

CS340T

Viewing Direction:

ALL O’CLOCK

Size:

5.5inch

Pixel Pitch (W*H):

0.021(H) *0.063(V)

LCM Driver IC:

HX8399C

Touch Screen Structure:

Highlight:

5.5 inch handheld PDA display screen

HX8399C Handheld PDA Display Screen

Product Description

Product Description:

——TXW550037N0-SN 5.5 "2000 nit LTPS Sunshine Screen Rebellious Monologue
1,I am not the 'screen', I am the 'light'
Most monitors humbly turn into mirrors under noon sunlight, but I insist on taking the sunlight for myself.
5.5 inches, 1080 x 1920, but with a brightness of 2000 cd/m ² - equivalent to stacking the backlights of 20 ordinary phones together. You look up at the scorching sun, but I still shine arrogantly.
2,Pixels have a cleanliness obsession
The LTPS pixel of 0.021 mm × 0.063 mm is thinner than a human hair.
In the 68.04 × 120.96mm vertical screen, they are arranged in a 4.15-megapixel dot matrix, rejecting jagged edges and ghosting, just to make every tree branch sharp like a knife in the 4K real-time image transmission of the drone.
3,The Cold War between Glass and Fingerprints
The surface is tempered glass with Asahi Glass, Mohs 9H; the bottom is OCA fully bonded, and the air layer is "evacuated".
Fingerprints can remain on the surface, but refraction, fog, Newton's rings - none of them can enter.
4,Stubbornness at minus 20 ℃
Northeast Snowfield -20 ℃, ordinary LCD will drag out long afterimages; I still refresh at 60 Hz, with a touch reporting rate of 120 Hz, and can slide accurately even with 2mm military gloves.
It's not because I'm cold resistant, but because I used the heat on the blade -36 LEDs are arranged in a 360 mA current array, and the backlight board is a "miniature radiator".
5,Minimalism of MIPI
39 pin MIPI+I ² C touch, only gives you two wires: power and signal.
Engineers no longer have to worry about LVDS differential pairing and RGB timing, plug in the cables and light up the world.

6,The universe within three millimeters
Hidden inside the 3.2mm body:
0.3mm tempered glass
0.2 mm OCA adhesive
0.8mm touch sensor
0.7mm LTPS panel

1.2 mm hybrid backlight
Every micrometer is filled with the triangle balance technique of "lightweight, sturdy, and heat dissipation"

7,Scene , it's here to find the screen
Outdoor handheld PDA: Scan the code under strong light, and the QR code will no longer be "dead in the light".
• Photography monitor: 1080P vertical monitoring, peak brightness of 2000 nits, HDR highlights with no shortage of details.
Drone remote control handle: Image transmission delay<30 ms, can still distinguish wires 100 meters away under sunlight.
Instrumentation: Engineers can take off their sunglasses and adjust parameters on the construction site at noon.

Features:

Product Customization Services for TFT LCD Module:

- Brand Name: TXWEI

- Model Number: TXW550037N0-SN

- Place Of Origin: Guangdong

- Certification: CE ROHS FCC

- Minimum Order Quantity: Negotiate

- Price: Negotiate

- Packaging Details: Cardboard

- Delivery Time: 16

- Payment Terms: L/C TT D/P

- Supply Ability: 10000pcs

- Mechanical Outline Size(W*H*T): 83.7(W) ×141.2(H) ×3.2(T)

- Touch Interface: IIC

- LCM interface: MIPI Interface

- Touch Driver IC: CS340T

- Lumens degrees: 2000cd/㎡

Keywords: tft display, 7 inch touch tft lcd, tft lcd module

TXW550037N0-SN has turned "2000 cd/m ² ultra bright+1080P vertical screen+fully integrated touch+-20 ℃~+60 ℃ wide temperature" into a 5.5-inch small steel cannon, which can be quickly matched according to the three dimensions of "light, operation, and temperature" in typical application scenarios:
Extreme lighting
• Outdoor handheld at noon: inspection PDA, surveying tablet, express delivery gun - direct sunlight without shading, scanning/taking photos once successfully.
• Photography monitor: DSLR and film camera vertical sub screen, HDR highlight details are visible in real-time, and outdoor Vlog shooting does not overturn.
Accurate interaction
Drone remote control handle: 2000 nits with 120 Hz touch reporting, can accurately control the pan tilt even with gloves.
• Instruments and meters: portable oscilloscopes and spectrometers, direct reading on strong light construction sites, eliminating the need for manual cold shelters.
Temperature span
Cold region operation: -20 ℃ Northeast cold chain logistics handheld terminal, cold start without dragging shadows.
Tropical outdoor:+60 ℃ Middle East solar inspection equipment, long-term exposure to sunlight does not reduce brightness.
Summary in one sentence:
As long as the usage scenario meets any two of the three conditions of "glaring sunlight+requiring high-definition touch+large environmental temperature difference", TXW550037N0-SN can directly enter the field.
