8.0-inch High Definition IPS Car Navigation LCD Display Screen With 1024*768 Pixels And Wide Temperature Range

Product Description:

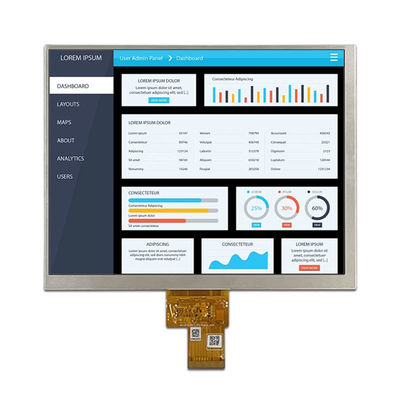

TXW800038B0: 8-inch "high-definition wide temperature screen" designed for harsh environments
When most 8-inch screens are still worrying about whether they can stay in the car for an afternoon without crashing, TXW800038B0 has already written "not feeling dizzy, not freezing, and not shaking" into its genes.

It is a 4:3 ratio IPS LCD screen with a resolution of 1024 × 768- seemingly a classic XGA, but due to the 0.05 mm pixel pitch, the 162 mm display width accommodates more details than ever before: the edges of the vehicle speed numbers are sharp, the medical waveform is not jagged, and the 8 pt font of the industrial menu is still sharp. The 178 ° full field of view of IPS allows the driver to look sideways, the technician to look down, and the doctor to look sideways, with a consistent image that does not appear white or reversed.
Brightness of 300 cd/m ², not too dazzling, but enough to be clearly read in a car or semi outdoor workstation with a sunshade pulled up during the day; Normally Black mode brings high contrast and eliminates gray shadows in the dark field. 33 high brightness LEDs are driven with low power consumption of 220 mA, and the backlight uniformity exceeds 80%, so you won't feel tired even when staring at the screen for a long time.
What truly sets it apart is the industrial grade wide temperature range of -30 ℃ to+80 ℃. Northern cold chain vehicles ignite in the early morning, and the screen lights up for 3 seconds; The unmanned transport vehicle exposed to the sun in the south still has no yellow spots at 75 ℃ in the machine compartment; The port salt spray, mining dust, and vehicle vibration have all passed rigorous reliability testing. The LVDS interface has anti-interference capability of over 5 meters, the motherboard can be wired away from the screen, and EMC can be achieved in one go.
The overall thickness of the machine is only 2.6 mm, and the shape of 174 × 136 mm can directly replace the old 6.5 "/7" industrial screen without the need for re molding. Tianxianwei Technology has equipped it with a complete set of Linux, Android, RTOS drivers and a 24 month warranty, with a 7 × 24-hour technical response, allowing engineers to focus on system innovation rather than repeatedly debugging a single screen.

key parameter
Size | 8.0 inches (4:3)
Resolution | 1024 × RGB × 768 (XGA)
Display mode | Normally Black IPS
Perspective | ALL O'CLOCK (178 °)
Brightness | 300 cd/m ²
Pixel spacing | 0.05275 × 0.15825 mm
Effective display area | 162.05 × 121.54 mm
Dimensions | 174 × 136 × 2.6 mm
Interface | 40 Pin LVDS
Backlight | 33 LEDs, 8.9-10 V, 220 mA
Working temperature | -30 ℃~+80 ℃
Storage temperature | -30 ℃~+80 ℃
Quality | 99.7% shipping yield, 24 months warranty

The display effect of TXW800038B0 can be summarized in four words: "clear, wide, stable, and soft".

clear
1024 × 768 XGA resolution+162 mm × 121 mm effective display area, pixel density of 158 PPI, clean and sharp edges of text, curves, and icons, and small font sizes are also sharp and visible.
wide
IPS full view technology, with no color deviation or brightness reversal at 178 ° up, down, left, and right; Simultaneous viewing by multiple people or in car oblique scenes can maintain consistent image quality.
stability
-Industrial grade wide temperature range from 30 ℃ to+80 ℃, with no screen ghosting or slow response; 300 cd/m ² brightness combined with Normally Black mode, high contrast, good dark field details, and readability even under strong light.
soft
33 white LED side in backlight with uniformity ≥ 80%, providing long-lasting viewing without glare; The LVDS interface is anti-interference, with no flicker or ripples on the screen.
In summary, TXW800038B0 can provide a visual experience close to that of a tablet in both in car and industrial environments, yet it has industrial grade reliability.

Featured Highlights
4:3 classic ratio, no need to change UI for upgrading old systems
Ultra thin 2.6mm thickness for easy embedded installation
LVDS interface is anti-interference and supports long lines of over 5 meters
Wide temperature design to meet the harsh environments of automotive and industrial use
Typical applications
Car navigation/instrument panel, industrial control screen, medical equipment, human-machine interface control panel, etc.
