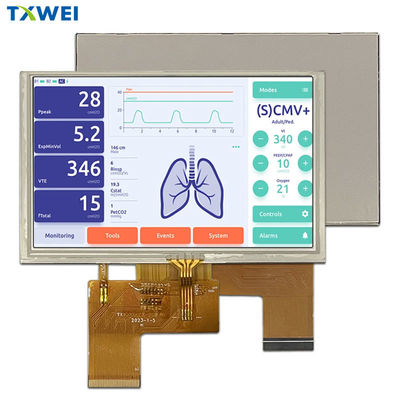

Customized 5-inch LCD Display Screen With 800 * 480 High-definition RGB Interface Display Screen

Product Description:

5.0 "Industrial grade IPS TFT-LCD resistive touch screen
——High brightness, full view, one-step human-machine interaction display solution
1, Product positioning
TXW500062S0-RTP is a 5.0-inch full-color TFT-LCD specially designed by Shenzhen Tianxianwei Technology Co., Ltd. for industrial, medical, security, and consumer electronics. Combining IPS full view, 550 cd/m ² high brightness, 4.3mm ultra-thin body, and 4-wire resistive touch, it saves customers the trouble of selecting, fitting, and debugging the "LCD+touch" secondary combination, truly achieving "ready to use".
2, Core selling points
Full lamination resistive touch: The LCD and 4-wire resistive touch are fully laminated at the factory, saving space, process, and yield risks.
IPS 178 ° full field of view: no color deviation up, down, left, right, meeting multi angle operation requirements.
550 cd/m ² high brightness: The indoor strong light or outdoor shadow environment is still clear.
Industrial grade reliability: -20 ℃~+70 ℃ working temperature, 99.7% shipping yield, 24 months warranty.
Standard 40 Pin RGB interface: plug and play, complete documentation, zero threshold for development.

Technical Parameters:

Customization:

Product Customization Services for TFT LCD Display Module:

Brand Name: TXWEI

Model Number: TXW500062S0-RTP

Place Of Origin: Shenzhen

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16

Payment Terms: L/C TT D/P

Supply Ability: 10000pcs

Lcm pin n count: 40pin

LCM Driver IC: ST7262

Active area: 108(H) * 65.8(V)

Number of pixels: 800*480

Storage Temperature: -30+80℃

Applications:

Typical application scenarios
•Industrial control: PLC, frequency converter, CNC panel
•Medical equipment: monitor, infusion pump, portable diagnostic device
•Security access control: facial recognition access control machine, attendance machine
•Consumer electronics: high-end home appliance panels, 3D printer interface
• Handheld terminals: PDA, courier scanner, measuring instrument

 Development and Support
• Data package: reference schematic, Linux/Android driver, 2D/3D architecture diagram
• Technical services: interface matching, touch calibration, EMC rectification, structural drilling guidance
• Delivery cycle: 5k pieces in stock, 5-10 days for small batches starting from 1000 pieces
• After sales guarantee: 7 × 24-hour technical response, 24 month warranty

Conclusion:

TXW500062S0-RTP integrates "high brightness display+full view angle+resistive touch" into a standard product, allowing engineers to focus on overall innovation without repeatedly trial and error on the display subsystem. Choosing it means choosing an industrial grade display experience that saves time, effort, and worry.
