High Color Gamut High Brightness LCD Screen Touchable 10.4-inch 1024*768 LVDS Wide Temperature

Product Description:

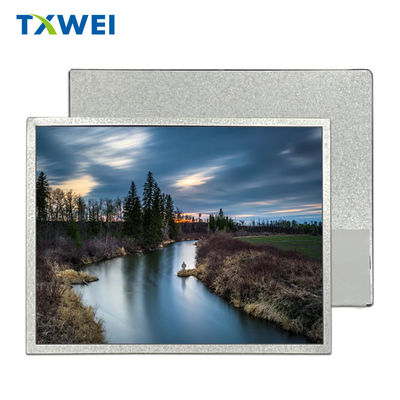

TXW104001N0 is a 10.4-inch industrial grade TFT LCD display screen independently developed by Shenzhen Tianxianwei Technology Co., Ltd. It adopts a 4:3 standard ratio design and is equipped with a 1024 × 768 (XGA) high-resolution IPS panel with a brightness of 400nits. It is a highly reliable display solution specially designed for harsh industrial environments.

The classic 4:3 ratio, 1024 × 768 resolution, and 0.2055 mm pixel pitch ensure that characters, waveforms, and images remain sharp and clear within a display area of 210.432 × 157.824 mm.
228.4 × 174.5 × 5.9 mm ultra-thin structure, which is 30% thinner than 12.1-inch products, can be easily embedded in compact scenarios such as car center consoles, portable devices, medical tablets, and drone ground stations.

IPS full view angle: truly no blind spots
ALL O'CLOCK 178 °/178 ° full field of view ensures consistent color saturation and contrast for engineers during cabinet side maintenance, doctor surround consultations, and driver squinting navigation, bidding farewell to the awkward "yin-yang screen" of TN screens.

400 nits high brightness+wide temperature backlight
32 high-efficiency LEDs, 160 mA constant current drive, 27 V back pressure, providing uniform brightness of 400 nits; The working temperature is -20 ℃~+70 ℃, and the storage temperature is -30 ℃~+70 ℃. It can continuously and stably output regardless of cold nights in the north or high temperatures in the cabin.

LVDS 30 Pin: High speed stability, plug and play
Differential signal anti-interference, one-time locking of 30 pin socket, reducing the complexity of wiring harness; Supports 6-bit/8-bit color depth switching, compatible with mainstream ARM, x86, and FPGA driver boards, shortening the overall development cycle.
5, The Tianxianwei standard behind the 99.7% yield rate
From Class 1000 cleanroom, to AOI+aging+vibration triple testing, and to 24-hour after-sales response, Tianxianwei Technology has set a "zero repair" confidence for every TXW104001N0 with a 99.7% shipping yield rate.

Customization:

Product Customization Services for TFT LCD Module:

Brand Name: TXWEI

Model Number: TXW104001N0

Place of Origin: Shenzhen

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16

Payment Terms: L/C TT D/P

Supply Ability: 10000pcs

Size: 10.4inch

Mechanical Outline Size(W*H*T): 228.4*174.5*5.9

Lcm pin n count: 30pin

Active area: 210.432(H) * 157.824(V)

Viewing direction: ALL O’CLOCK

Technical Parameters:

Core technical parameters
Panel type: IPS hard screen (normally black mode)
Effective display area: 210.432 × 157.824mm
Pixel structure: RGB stripe arrangement
Pixel spacing: 0.2055mm
Viewing angle: All O'CLOCK

Optical performance
Brightness: 400cd/m ²
Contrast ratio: 800:1 (typical value)
Color gamut: 72% NTSC (typical value)

Electrical characteristics
Driving method: TFT active matrix
Interface type: LVDS 30PIN
Backlight system: 32 LED arrays
Backlight voltage: 27V DC
Backlight current: 160mA
Mechanical characteristics
Dimensions: 228.4 × 174.5 × 5.9mm
Surface treatment: anti glare hardening treatment
Installation method: Front frame fixed (standard installation holes provided)

Environmental adaptability
Working temperature: -20 ℃~+70 ℃
Storage temperature: -30 ℃~+70 ℃
Seismic performance: 5-500Hz/5G (compliant with IEC60068-2-6 standard)

Excellent display performance
IPS technology ensures no color cast at 178 ° full viewing angle
400nits high brightness meets the needs of various indoor and outdoor lighting environments
1024 × 768 resolution provides delicate display effects

Industrial grade reliability
Wide temperature design suitable for extreme working environments
Strengthen the impact resistance and scratch resistance of the glass surface
Mean Time Between Failures (MTBF)>50000 hours

Optimized power supply design
Efficient LED backlight system with a power consumption of only 4.32W
Supports PWM dimming (100-10kHz)
Low electromagnetic interference design

When space is compressed to the extreme, performance cannot be compromised. The TXW104001N0, with its exquisite 10.4-inch body, is equipped with a 178 ° ease, 400 nits sharpness, and 99.7% reliability. It is not only a display screen, but also a trusted "second pair of eyes" for engineers, doctors, soldiers, and drivers - allowing professionals to magnify infinite possibilities in a smaller field of view.
