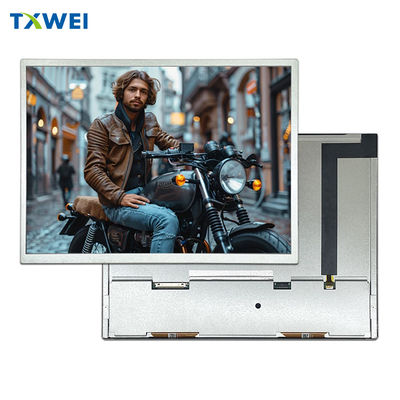

12.1 Inch 500nits 1024*768 Resolution IPS TFT LCD Module With Ips LVDS Interface

Product Description:

TXW121007N0: Make every degree of view a "golden view"
In the world of LCD displays, perspective is never a simple numerical game, but a competition between "reality" and "immersion". TXW121007N0- Shenzhen Tianxianwei Technology Co., Ltd.'s latest 12.1-inch IPS full view TFT screen, uses a disruptive visual revolution to tell the world that true professional level displays have no "dead corners".

1, IPS Full View: Clear View, Boundless Colors
Traditional TN screens often have a viewing angle of 100 °/120 ° as the boundary, and even a slight side view can result in grayscale reversal and color drift, causing designers, engineers, drivers, and doctors to miss the real picture at critical moments. TXW121007N0 adopts IPS full view (ALL O'CLOCK) technology, with a wide viewing range of 178 °/178 ° up, down, left, right, extending the concept of "front view" to infinity. Whether it's the installation of the car's central control tilted at 45 degrees or the need for multiple people to consult on medical equipment at the same time, the images are always bright and sharp, with every detail vividly displayed.

2, 500 nits high brightness: can also be calm during the day
Outdoor direct sunlight, salt spray on ship decks, strong interference from military equipment - harsh environments never leave room for display. 500 nits high brightness backlight, complemented by 32 high-efficiency LED arrays, allows TXW121007N0 to maintain transparency and clarity under scorching sun; -The wide temperature range design from 30 ℃ to+80 ℃ ensures its stability in extreme cold or high temperature conditions, without fear of seasonal changes.

3, 1024 × 768 resolution: Classic 4:3, professional return
When 16:9 became the mainstream of consumer grade, 4:3 has been enduring in fields such as industry, healthcare, and security. The classic resolution of 1024 × 768 is compatible with traditional video sources and avoids the stretching of 16:9 images in vertical or square screen scenes. 0.08 mm precision pixel spacing ensures sharp character edges and smooth waveform lines, making it easy for engineers to read and for doctors to read.

4, LVDS interface&20 pin minimalist wiring
High speed LVDS differential signal, strong anti-interference ability, simple 20 pin definition, making the wiring of the whole machine more relaxed; Paired with a compact structure of 260.5 × 204 × 8.51 mm, it can easily fit into space demanding cabinets, consoles, or handheld terminals.

5, 99.7% yield rate: the confidence behind craftsmanship
From independent design to dust-free workshop, from AOI optical inspection to 24-hour aging, Tianxianwei Technology has locked the shipment yield rate at 99.7% with strict quality control. This is not just a string of numbers, but also a footnote to the belief in "zero defects", allowing customers to gain peace of mind without debugging every time they start up.

pplication area:

• Vehicle display system
• Industrial security equipment
• Medical display equipment
• Military display equipment
• Outdoor Highlighting
• Ship Navigation System

Technical Parameters:

Applications:

Model: TXW121007N0
Size: 12.1 inches (4:3 ratio)
Display type: Normally black mode
Panel technology: IPS full view TFT active matrix
Resolution: 1024 (RGB) x 768 pixels
Pixel arrangement: RGB stripe arrangement
Pixel spacing: 0.08mm
Effective display area: 245.76 (H) × 184.32 (V) mm
Structural dimensions: 260.5 × 204 × 8.51mm

display performance
Brightness: 500nits (high brightness)
Viewing angle: All O'CLOCK
Working temperature: -30 ℃ to+80 ℃
Storage temperature: -30 ℃ to+80 ℃
Interface and Driver
Display interface: LVDS interface
Number of interface PINs: 20 pins
Backlight system: 32 LEDs
Backlight current: 180mA
Backlight voltage: 24V

quality assurance:

Delivery yield rate: 99.7%
Professional full process technical support
Strict production quality control
A comprehensive after-sales service system
This display screen is independently developed and produced by Shenzhen Tianxianwei Technology Co., Ltd. With a high brightness of 500nits and a wide temperature range of -30 ℃ to+80 ℃, it is particularly suitable for professional applications in various harsh environments.
