Medical IPS High-definition LCD Display Screen 10.1-inch 1024 * 600 LVDS for Industrial Control

Medical IPS High-definition LCD Display Screen 10.1-inch 1024 * 600 LVDS for Industrial Control

MOQ: Negotiate
Price: Negotiate
Standard Packaging: Cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW100015S0
Backligh Voltage:
8.4-9.6V
Operating temperature:
-20+70℃
Number Of Pixels:
1024*600
LCM Interface:
LVDS Bit Interface
Viewing Direction:
IPS
Lcm Pin N Count:
40pin
Active Area:
222.72(H) *125.28(V)
Storage temperature:
-30+80℃
Highlight:

medical LCD Display Screen

,

LVDS LCD Display Screen

,

Industrial Control LCD Display Screen

Product Description

Product Description:

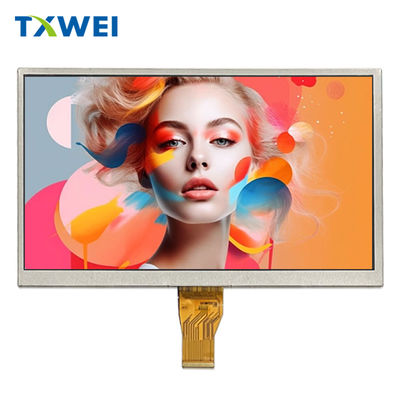

Professional display solution: TXW100015S0 10.1-inch industrial grade TFT LCD display screen

In the fields of industrial control and professional display, the TXW100015S0 10.1-inch TFT LCD display screen launched by Shenzhen Tianxianwei Technology Co., Ltd. has become an ideal choice for many industry applications due to its excellent performance and reliable quality.

1, Product positioning
10.1-inch high brightness IPS full-color TFT-LCD module with G+G capacitive touch, designed for harsh environments such as automotive, outdoor, industrial, medical, etc.


2, Key selling points

Display: IPS full view, 1024 × 600, 300 cd/m ², readable under sunlight.

Wide temperature range: -20 ℃~+70 ℃ for operation, -30 ℃~+80 ℃ for storage.

High reliability: 99.7% shipping yield, full process technical support+after-sales guarantee.

Compact structure: 5.2 mm thickness, 40Pin LVDS+I ² C touch interface, easy to integrate.



Excellent display performance
TXW100015S0 adopts a 10.1-inch 16:9 ratio design, equipped with a 1024 × 600 high-resolution IPS panel, presenting a full view high-definition display effect. The high brightness of 300cd/m ² ensures clear visibility even in strong light environments, and the RGB stripe pixel arrangement and fine pixel spacing of 0.2175 × 0.208mm bring delicate display effects. The effective display area of 222.72 × 125.28mm, combined with the compact structural dimensions of 257 × 159.6 × 5.2mm, provides great convenience for device integration.


Professional Industrial Design
The display screen adopts HX8282A11 driver IC and LVDS bit interface, with a 40pin connection design to ensure stable signal transmission. The 27 LED backlight system only requires 180mA current at an operating voltage of 8.4-9.6V, ensuring high brightness output of 300cd/m ² and excellent energy efficiency performance. The design of the glass cover plate and G+G structure touch screen, combined with the GT9271 touch driver IC and IIC interface, provides a precise and reliable touch experience.


Adaptability to harsh environments
TXW100015S0 has a wide temperature working range of -20 ℃ to+70 ℃ and a storage temperature range of -30 ℃ to+80 ℃, suitable for various harsh environments. The strict production quality control of Tianxianwei Technology has achieved a product delivery yield rate of 99.7%, providing reliable guarantee for industrial applications.

Technical Parameters:

Operating Temperature -20 to +70℃
Pixel Pitch (W*H) 0.2175*0.2088
Size 10.1 inch
LCM Pin N Count 40 pin
LCM Driver IC HX8282A11
Active Area 222.72(H) * 125.28(V)
Mechanical Outline Size (W*H*T) 257 * 159.6 * 5.2
Number of Pixels 1024 * 600
Viewing Direction IPS
Lumens Degrees 300 cd/㎡



Customization:

Product Customization Services for TFT LCD Screen:

Brand Name: TXWEI

Model Number: TXW100015S0

Place of Origin: Shenzhen

Certification: CE ROHS FCC

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Cardboard

Delivery Time: 16

Payment Terms: L/C TT D/P

Supply Ability: 10000pcs

Backlight Voltage: 8.4-9.6V

Lcm Pin N Count: 40pin

Number of Pixels: 1024*600

Mechanical Outline Size(W*H*T): 257*159.6*5.2

Viewing Direction: IPS

Widely applicable fields:

This product is designed for harsh environments and is widely used in:

  • Car navigation system
  • Outdoor sunlight viewing equipment
  • Industrial Control Equipment
  • Medical display equipment
  • Human machine interface operation panel
  • Professional service guarantee



As a professional display product independently developed and produced by Tianxianwei Technology, TXW100015S0 enjoys full technical support and professional after-sales service. The company has a first-class production quality control system to ensure that every display screen meets industrial grade reliability standards.


Whether it is outdoor applications that require high brightness display or industrial environments with strict stability requirements, the TXW100015S0 10.1-inch TFT LCD display can provide excellent visual experience and reliable performance, making it a wise choice for professional display solutions.
