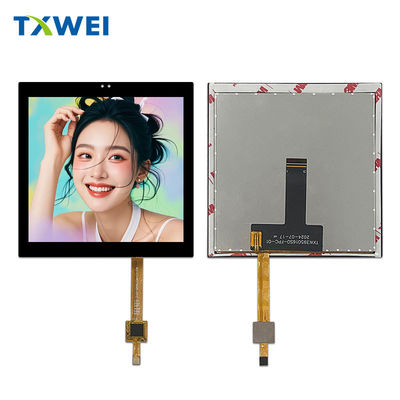

3.95-inch TFT LCD display screen tft480 × 480 driver ST7701SN interface 2 Lane MIPI

MOQ: 1
Price: negotiation
Delivery Period: 7-16days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE FCC ROHS
Model Number
TXW395016S0-BST
Document
TXW395016S0-BST_SPEC.pdf
Number Of Pixels:
480*480
Viewing Direction:
IPS
Display Interface:
2 Lane MIPI
Brightness:
500 Nits
Active Area:
71.86*70.18(mm)
Outline Size:
83*83*3.06(mm)
Operating Temperature:
-20+70℃
Storage Temperature:
-30+80℃
Touch Technology:
G+F+F
Touch Interface:
IIC
Touch IC:
GT911
Highlight:

3.95-inch TFT LCD display

,

TFT LCD screen with MIPI interface

,

480x480 resolution TFT display

Product Description

Product Name:
TXW395016S0-BST 3.95" TFT LCD Module with Capacitive Touch Panel (480x480, MIPI Interface)
Meta Description:
Discover the TXW395016S0-BST, a high-resolution 3.95-inch TFT LCD display module with 480x480 pixels, MIPI DSI interface, and capacitive touch. Ideal for smart home devices, industrial control, and handheld equipment.

Product Overview

The TXW395016S0-BST is a compact, high-performance 3.95-inch TFT LCD module designed for applications requiring vibrant color display and reliable touch input. With a resolution of 480×480 pixels, 16.7M colors, and a capacitive touch panel (CTP), this module delivers sharp visuals and responsive user interaction.
Manufactured by Shenzhen Tianxianwei Technology Co., Ltd., the TXW395016S0-BST integrates a ST7701SN driver IC, supports a 2-lane MIPI DSI interface, and features all-viewing angle technology, making it ideal for modern embedded systems and smart devices.

Key Features

  • Display Size: 3.95 inches
  • Resolution: 480×480 pixels
  • Color Depth: 16.7M colors
  • Interface: 2-lane MIPI DSI
  • Touch Panel: Capacitive (G+G structure)
  • Driver IC: ST7701SN
  • Touch Controller: CST340
  • Backlight: White LED (12 LEDs, edge-lit)
  • Viewing Angle: All-viewing (wide angle)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +80°C
  • Module Dimensions: 74.66 × 76.53 × 2.06 mm
  • Module + CTP Dimensions: 81.80 × 84.95 × 3.54 mm


Module Function Description


Pin No.

Symbol

LCM  Functional

1

LEDA

Power supply for backlight anode input terminal.

2

LEDA

Power supply for backlight anode input terminal.

3

LEDA

Power supply for backlight anode input terminal.

4

NC

NC

5

LEDK

Power supply for backlight cathode input terminal.

6

LEDK

Power supply for backlight cathode input terminal.

7

LEDK

Power supply for backlight cathode input terminal.

8

LEDK

Power supply for backlight cathode input terminal.

9

GND

Power Ground

10





11

MIPI_2P(NC)

NC

12

MIPI_2N(NC)

NC

13

GND

Power Ground

14

MIPI_1P

High speed interface data differential signal input/output pins

15

MIPI_1N

High speed interface data differential signal input/output pins

16

GND

Power Ground

17

CLKP

High speed interface clock differential signal input/output pins

18

CLKN

High speed interface clock differential signal input/output pins

19

GND

Power Ground

20

MIPI_0P

High speed interface data differential signal input/output pins

21

MIPI_0N

High speed interface data differential signal input/output pins

22

GND

Power Ground

23

MIPI_3P(NC)

NC

24

MIPI_3N(NC)

NC

25

GND

Power Ground

26

IOVCC

Power Supply For I/O.

27

RESET

Reset signal input terminal. Active at ‘L’.

28

GND

Power Ground

29

IOVCC

Power Supply For I/O.

30

VCC

Power Supply For LCD.

31

VCC

Power Supply For LCD.
3.95-inch TFT LCD display screen tft480 × 480 driver ST7701SN interface 2 Lane MIPI 0

Applications

The TXW395016S0-BST is suitable for a wide range of applications, including:
  • Smart home control panels
  • Industrial HMI devices
  • Medical equipment displays
  • Portable instruments
  • Consumer electronics
  • IoT terminals

Reliability & Environmental Testing

This TFT LCD module has passed rigorous reliability tests, including:
  • High/Low Temperature Storage and Operation
  • Thermal Shock Cycling
  • High Humidity Storage (90% RH)
All tests ensure long-term stability and performance in demanding environments.

Customization & Support

We offer customization options for FPC design, backlight brightness, and interface configuration. Technical support and datasheet access are available upon request.
