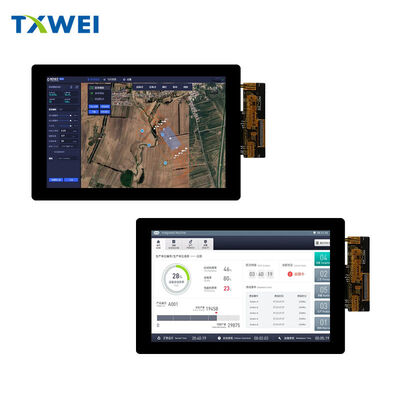

7-inch Incell integrated touch full lamination high-brightness assembly 1200*1920 drone remote control display panel

TXW702007N0-YZ 7-inch high-brightness fully laminated industrial MIPI screen
——A "clear at a glance" display solution tailored for demanding scenarios

[ Capture the buyer's attention with one sentence ]
2000-3600 nits sunlight readable + IPS full viewing angle + InCell touch, "plug and play" in four major fields: drones, unmanned vehicles, medical, and industrial control. In stock for bulk orders, customization supported!

1. Addressing the pain points of buyers directly
Is the screen turning gray under strong outdoor light? → With a peak brightness of 3600 nits, it remains clear even under direct midday sunlight.
Viewing angle color cast, image transmission delay? → IPS full viewing angle + MIPI 4 Lane high-speed interface, 1200×1920 HD without smearing.
Touch drift + large assembly thickness? → InCell integrated touch technology eliminates the traditional TP layer, resulting in a thin overall device of 4.02 mm, reducing weight and space.
High and low temperature crash? → -20 ℃~+70 ℃ industrial-grade temperature range, ensuring long-term stable operation of drones at high altitudes and unmanned ships on the deck.
Long development cycle? → 40Pin standard MIPI socket, compatible with RK/Qualcomm/NVIDIA core boards for plug-and-play, with sample production available in as fast as 3 days.

[ Real-life shooting scenes of typical applications ]

① Drone remote controller
With Highlight + IPS, drone pilots no longer have to "build a shed" during midday grassland operations.
② Unmanned vehicle/vessel ground station
The screen body remains black and free of any discoloration, even during winter testing at -20℃ in the north and exposure to the sun on the deck at +70℃.
③ Portable medical monitoring
InCell touch technology supports operation with wet hands or gloves, and is not damaged by disinfectant alcohol wipes.
④ Industrial computer/Vehicle-mounted vision
With a 7-inch golden size, the software UI of 1024×600/1280×800 does not require readjustment and can be directly upgraded to 1200×1920 high-definition.

[ Quick Selection Guide ]

brightness
Grade A 2000 nits - Indoor semi-outdoor, with optimal cost
Level B 2800 nits - outdoor shaded area/overcast day
C-grade 3600 nits - full sunlight at noon, essential for drones

[ structural plan ]
Standard version: 105.18×163.34×4.02 mm - pure screen, convenient for customers to make three-proofing structure
Enhanced version: 115×176.7×5.32 mm - equipped with a metal frame, with an anti-vibration rating of 5G, and secured with screws
extension cord/adapter board
Equipped with a 30 cm flexible MIPI extension cable and a Type-C adapter board, the handheld terminal can be retrofitted in just 10 minutes.

[ Technical Specifications ]

Quick Look Model: TXW702007N0-YZ

Size/Resolution: 7"  1200×1920

Display Area: 94.5 × 151.2 mm

Brightness: 2000-3600 nits (PWM 0-100 kHz dimming with no flicker)

Viewing Angle: IPS 85/85/85/85

Interface: MIPI DSI 4Lane 40Pin

Touch: InCell 10-point, IIC, supports Windows/Android/Linux driver-free

operation Temperature Range: -20 ℃~+70 ℃ Storage Temperature Range: -30 ℃~+80 ℃

ESD: Air ±15 kV, Contact ±8 kV MTBF: 50 000 h (25 ℃)

[ Delivery and after-sales service ]
Spot inventory: ≤500 pcs, shipment within 15 days; >500 pcs, delivery within 5 weeks.
Development materials: Gerber files, driver SDK, reference schematic diagram, structural 2D/3D drawings, and 1-on-1 FAE communication.
Warranty: 24 months, with free maintenance provided during the warranty period.
Certification: With simultaneous support for RoHS, CE, FCC, and REACH, exporting is hassle-free.

Order entry
Simply click "Inquire Now", enter the required quantity and brightness level, and we will provide a quote including tax and shipping within 30 minutes.
We support the provision of paid samples (≤2 pcs) and accept shipments via DHL/SF Express.
Bulk OEM: Customizable cover plate LOGO, brightness firmware, and cable length
High brightness, full viewing angle, ultra-thin design, and wide temperature range - TXW702007N0-YZ makes outdoor display no longer a bottleneck!
Inventory is updated in real-time. Place your order first to seize the opportunity for peak season delivery!
