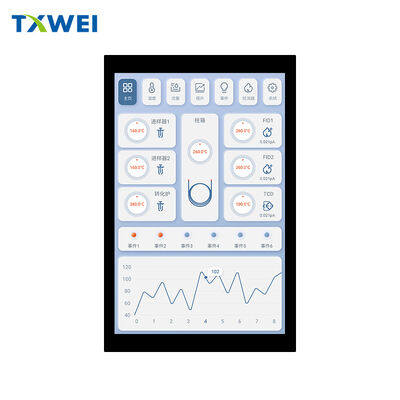

8-inch display screen mipi vertical screen Incell embedded touch screen intelligent speaker industrial tablet display panel

Products

8-inch display screen mipi vertical screen Incell embedded touch screen intelligent speaker industrial tablet display panel

MOQ:	1
Price:	negotiation
Delivery Period:	7-16days
Payment Method:	L/C,D/A,D/P,T/T
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

shenzhen

Brand Name

TXWEI

Certification

CE FCC ROHS

Model Number

TXW800041N0-HL

Number Of Pixels:

800*1280

Viewing Direction:

Display Interface:

Brightness:

800 Nits

Active Area:

107.64*172.22

Outline Size:

121.8*194*3.9mm

Operating Temperature:

-20+70℃

Storage Temperature:

-30+80℃

Number Of Pins:

40pin

Touch Technology:

Incell

Touch Interface:

Highlight:

8inch LCD touch screen MIPI interface

industrial LCD touch screen full lamination

TFT LCD display 800x1280 resolution

Product Description

TXW800041N0-HL — 8-Inch High-Brightness IPS Display Module with Integrated In-Cell Touch

1. Product Overview

The TXW800041N0-HL is an advanced 8-inch display module engineered for demanding embedded applications where visual clarity, touch responsiveness, and environmental robustness converge. Featuring a portrait-oriented 800 × 1280 pixel matrix, this module delivers crisp, high-definition imagery optimized for human-machine interface (HMI) deployments. The integration of In-Cell touch technology eliminates the need for a separate touch sensor stack, resulting in a streamlined optical stack that enhances light transmission, reduces parallax, and contributes to an exceptionally slim form factor.

2. Display Performance & Optical Characteristics

At the core of the TXW800041N0-HL lies an IPS (In-Plane Switching) liquid crystal panel, ensuring consistent color reproduction and wide viewing angles across all orientations. This technology effectively minimizes color shift and gamma distortion when viewed off-axis—a critical advantage for multi-user or variable-mounting scenarios.

Resolution: 800 (H) × 1280 (V) pixels
Brightness: 800 nits (typical), enabling legible content presentation even under direct ambient light or outdoor conditions
Viewing Direction: Full IPS — superior image fidelity from 178° horizontal and vertical perspectives
Display Controller: Driven by the ILI9882U chipset, a proven driver IC offering stable signal processing, low electromagnetic interference (EMI), and broad host compatibility

3. Touch Technology & Interface

The module incorporates In-Cell capacitive touch technology, embedding the touch sensing layer directly within the LCD cell rather than as a laminated overlay. This architectural choice yields multiple engineering benefits: reduced overall stack thickness, improved touch coordinate accuracy, enhanced display luminance efficiency, and superior durability against surface contaminants and moisture ingress.

Touch Interface: I²C (IIC) — a standardized two-wire serial protocol ensuring seamless integration with mainstream microcontrollers and application processors
Touch Protocol: Industry-standard multi-touch support with high report rates suitable for gesture-rich user experiences

4. Mechanical Specifications

The TXW800041N0-HL is packaged in a compact, mechanically rigid outline designed to facilitate straightforward integration into front-panel assemblies and bezel-mounted enclosures.

Active Display Area: 107.64 mm (W) × 172.22 mm (H)
Module Outline Dimensions: 121.8 mm (W) × 194 mm (H) × 3.9 mm (D)

The sub-4mm total thickness underscores the module’s suitability for space-constrained industrial tablets, smart speakers, and flush-mount access control terminals where industrial design minimalism is paramount.

5. Environmental Reliability & Operating Endurance

Built to withstand challenging thermal environments, the TXW800041N0-HL maintains operational integrity across a broad temperature spectrum. This resilience makes it equally viable for climate-exposed outdoor kiosks, thermally variable factory floors, and continuously running indoor appliances.

Operating Temperature Range: −20°C to +70°C
Storage Temperature Range: −30°C to +80°C

These specifications ensure that the display module retains stable electro-optical performance during cold-start conditions and sustained high-temperature operation without compromising liquid crystal response times or touch sensor calibration.

6. Electrical Interface & System Integration

The display video path is routed through a MIPI DSI 40-pin interface, the de facto standard for high-speed, low-power display connectivity in modern embedded systems. The MIPI interface supports high refresh rates and deep color depths while maintaining reduced pin count and PCB routing complexity compared to legacy parallel RGB solutions.

Display Interface: MIPI DSI, 40-pin connector
Touch Interface: I²C (IIC)

System architects benefit from a unified, low-footprint interconnect strategy that simplifies bill-of-materials (BOM) management and accelerates time-to-market for integrated product designs.

7. Target Application Scenarios

The TXW800041N0-HL is architecturally versatile, addressing a diverse portfolio of vertical markets that demand reliable visual output combined with intuitive touch interaction:

Smart Speaker Displays: Compact footprint and portrait orientation align naturally with voice-assistant devices requiring visual feedback and touch-based control surfaces.
Industrial Tablet Displays: Wide temperature tolerance, high brightness, and durable In-Cell construction satisfy the rigors of shop-floor and field-service tablets.
Security & Access Control: Slim profile enables elegant flush mounting in door stations, intercoms, and biometric terminals; IPS viewing angles accommodate users of varying heights and positions.
Educational Tablets: High luminosity and accurate touch response support extended-use learning devices in both classroom and remote education cont

Document Control
Model: TXW800041N0-HL
Revision: v1.0 — Technical Datasheet
For engineering validation and integration support, consult the complete electrical and mechanical drawing set prior to PCB layout finalization.
