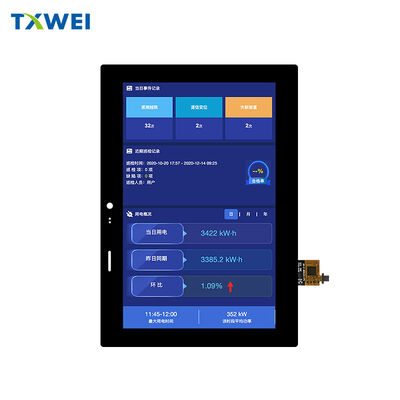

8-inch LCD capacitive touch screen with MIPI interface, resolution of 1200*1920, suitable for security display and industrial control TFT display module

MOQ: 1
Price: negotiation
Delivery Period: 7-16days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE FCC ROHS
Model Number
TXW800042B0-YLT
Document
TXW800042B0-YLT_SPEC.pdf
Number Of Pixels:
1200*1920
Viewing Direction:
IPS
Display Interface:
MIPI 4 LANE
Brightness:
500 Nits
Active Area:
107.64*172.22
Outline Size:
137.61*197.06*4.5mm
Operating Temperature:
-10+60℃
Storage Temperature:
-20+70℃
Number Of Pins:
31pin
Touch Technology:
G+G
Touch Interface:
IIC
Touch IC:
GT1151QM
Highlight:

8-inch MIPI TFT LCD display

,

capacitive touch screen industrial display

,

1200x1920 resolution security display module

Product Description

TXW800042B0-YLT
8-Inch 1200×1920 IPS MIPI Display – 500 nits, G+G Touch, Slim 4.5 mm
Built for Security Panels, Plant-Growth Controllers, Tower Cranes, Smart Lockers & Medical Monitors


Why Engineers Choose TXW800042B0-YLT

  • Ultra-Clear 1200×1920 on an 8" diagonal = 283 PPI, icons razor-sharp at 30 cm viewing distance.
  • 500 nits with IPS 85/85/85/85 – readable under warehouse fluorescent or greenhouse LEDs, no premium-sunshine price tag.
  • G+G capacitive touch (GT1151QM) supports rain, glove, 2 mm tempered-glass overlay – perfect for outdoor kiosks.
  • 31-pin MIPI DSI 4-lane – single FPC, <150 mW @ black image, drops straight onto RK3566, MTK, NXP i.MX8.
  • –10 °C ~ +60 °C operating certified; survives night-frost on construction site or 45 °C greenhouse noon.
  • 137.61 × 197.06 × 4.5 mm outline – thinner than a pencil, slides into 10 mm IP65 enclosure without redesign.


Quick Specs

Parameter Value
Model TXW800042B0-YLT
Size / Resolution 8" / 1200 × 1920
Active Area 107.64 × 172.22 mm
Luminance 500 nits (typ.), 800:1 CR
Viewing Angle IPS full 85°
Interface MIPI DSI 4-lane, 31 pin, 1.2 Gbps/lane
Touch G+G, 10-point, 100 Hz report, I²C, GT1151QM
Outline 137.61 × 197.06 × 4.5 mm
Operating Temp –10 °C ~ +60 °C
Storage Temp –20 °C ~ +70 °C
ESD ±8 kV contact, ±15 kV air
Power

3.3 V logic, 5 V BL, 2.1 W max.



Typical Applications

  1. Security & CCTV Monitor – 1200×1920 shows 3×2 720P streams natively; G+G touch works with 2 mm armored glass.
  2. Plant-Growth Controller – 500 nits combats pink/blue LED grow-lights; 60 °C upper limit handles greenhouse heat.
  3. Tower-C crane Display – slim 4.5 mm fits cockpit swing-arm; –10 °C cold-start guaranteed.
  4. Parcel & Food Lockers – portrait 1200×1920 lists full QR code; capacitive rain mode reduces false touches.
  5. Portable Medical Monitor – 283 PPI renders ECG traces without jaggies; G+G easy-clean for hospital disinfectant.

Global Compliance

  • CE, FCC, RoHS, REACH reports ready for EU/US market entry.
  • IEC-60068-2-1/2/14 cold, dry-heat & thermal-cycle tested.
  • Halogen-free & conflict-minerals-free statement available for corporate ESG audits.

Get Started Today

  1. Receive formal quotation + full datasheet + 3D files within 30 min.
  2. Approve sample order – we ship same day before 4 p.m. China time.
TXW800042B0-YLT – the slim, high-resolution 8" MIPI display that fits any space-critical, cost-sensitive industrial or smart-locker project. Stop compromising on clarity or temperature range—upgrade your next design now!
