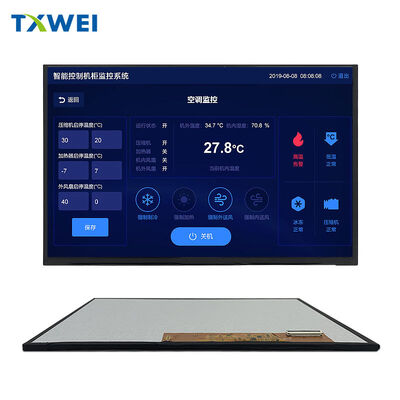

10.1inch LCD screen 1280*800 industrial control medical equipment 900 brightness LVDS interface display screen

MOQ: 1
Price: negotiation
Delivery Period: 7-16days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE FCC ROHS
Model Number
TXW100090S0
Number Of Pixels:
1280*800
Viewing Direction:
IPS
Display Interface:
LVDS 8 BIT
Brightness:
900nits
Active Area:
216.96*135.6(mm)
Outline Size:
229.1*148.9*4.3(mm)
Operating Temperature:
-30+80℃
Storage Temperature:
-30+80℃
Number Of Pins:
40pin
Highlight:

10.1 inch industrial LCD screen

,

medical equipment display screen

,

LVDS interface TFT display

Product Description
TXW100090S0 10.1 Inch IPS LCD Display | 1280×800 | 900 Nits | LVDS 40PIN | Industrial Grade -30℃~+80℃

Product Description

TXW100090S0 Industrial Grade 10.1" IPS LCD Display Module
The TXW100090S0 is a high-brightness industrial LCD display designed for demanding environments. Featuring IPS technology with 900 nits brightness and wide temperature operation, this 10.1-inch display delivers exceptional visibility and reliability for automotive, agricultural, medical, and industrial applications.
Key Features:
  • 10.1-inch IPS Panel – 1280×800 resolution with full viewing angle for clear visibility from any direction
  • Ultra-High Brightness – 900 nits ensures excellent outdoor readability and sunlight visibility
  • Industrial Temperature Range – Operating temperature -30℃ to +80℃, storage -30℃ to +80℃
  • LVDS Interface – 8-bit 40-pin LVDS for stable high-speed signal transmission
  • Compact Design – Active area 216.96×135.6mm, outline dimensions 229.1×148.9×4.3mm
  • EK79202 Driver IC – Proven performance with reliable display control
Ideal Applications:
  • Agricultural machinery central control displays
  • Truck navigation and dashboard instruments
  • Industrial equipment HMI panels
  • Medical instrument displays
  • Industrial all-in-one PC display
Parameter
Value
Model
TXW100090S0
Size
10.1 inch
Resolution
1280 × 800 pixels
Viewing Angle
IPS (Full viewing angle)
Brightness
900 cd/m² (nits)
Interface
LVDS 8-bit 40-pin
Driver IC
EK79202
Active Area
216.96 × 135.6 mm
Outline Dimensions
229.1 × 148.9 × 4.3 mm
Operating Temperature
-30℃ ~ +80℃
Storage Temperature
-30℃ ~ +80℃



Product Highlights (Bullet Points)


✅ Sunlight Readable – 900 nits high brightness for outdoor and high-ambient-light environments


✅ All-Angle Visibility – IPS technology ensures consistent colors and contrast at any viewing angle


✅ Extreme Temperature Operation – Reliable performance from -30℃ to +80℃ industrial range


✅ Versatile Integration – Standard LVDS 40-pin interface compatible with major industrial controllers


✅ Rugged Industrial Design – Built for agricultural vehicles, trucks, medical devices, and factory automation



TXW100090S0, 10.1 inch LCD display, IPS display module, 1280x800 LCD, high brightness display, 900 nits LCD, industrial LCD panel, LVDS display, automotive display, agricultural machinery display, medical LCD, wide temperature LCD, EK79202 driver, sunlight readable display
