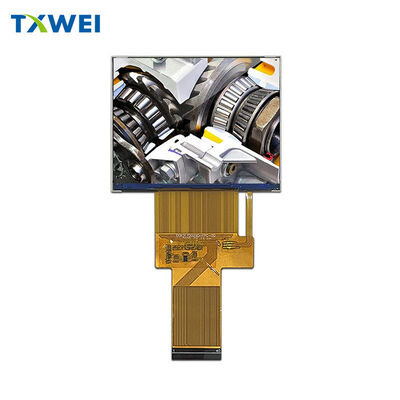

3.17 inch landscape LCD display 1024*768 high definition TFT industrial module with touch capability

MOQ: 1
Price: negotiation
Delivery Period: 7-16days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE FCC ROHS
Model Number
TXW317001B0
Document
TXW317001B0_SPEC.pdf
Number Of Pixels:
1024*768
Viewing Direction:
IPS
Display Interface:
RGB 24 Bit
Brightness:
600 Nits
Active Area:
64.51*48.38(mm)
Outline Size:
69.41*55.49*2.25(mm)
Operating Temperature:
-20+70℃
Storage Temperature:
-30+80℃
Number Of Pins:
40pin
Highlight:

3.17 inch TFT LCD display

,

1024x768 industrial LCD module

,

touchscreen TFT display module

Product Description

TXW317001B0

◆ 3.2" Industrial IPS Display ◆

1024×768 | 600 nits | -20°C~+70°C | RGB 24-bit

▎The Display Built for Extremes

Most screens fail when conditions get real. The TXW317001B0 doesn't know how to quit.
◈ Freezing cold → -20°C startup, no problem
◈ Blazing heat → +70°C continuous operation
◈ Blinding light → 600 nits cuts through glare
◈ Cramped spaces → 2.25mm thin, fits anywhere
Your product deserves a display that works as hard as your users do.

▎See What Others Miss

━━ Clarity Without Compromise

1024 × 768 Resolution
400 PPI pixel density. Microscopic cracks. Tissue textures. Surface defects. What hides on ordinary screens screams for attention here.

━━ Color That Stays True

178° IPS Viewing Angle
Head-on. Side angle. Upside down. Colors don't shift. Contrast doesn't collapse. Every viewer sees the same accurate image—no exceptions.

━━ Readable in Any Light

600 nits Peak Brightness
Outdoor fieldwork. Factory floors under harsh LEDs. Surgical suites with blazing overhead lights. Screen content stays visible when failure isn't an option.3.17 inch landscape LCD display 1024*768 high definition TFT industrial module with touch capability 0

▎Where It Belongs

◇ Industrial Inspection

Borescopes · Videoscopes · Quality Control Systems
Pipeline interiors. Engine compartments. Precision machinery guts. High resolution reveals millimeter-scale defects. Wide viewing angles let inspectors position the probe freely without losing image fidelity. Wide-temperature certification means arctic pipelines and desert solar farms get the same reliable performance.

◇ Medical Visualization

Endoscopes · Laparoscopes · Laryngoscopes
Inside human bodies, lighting is scarce and color accuracy saves lives. 600 nits brightness penetrates dark cavities. True-color IPS presentation helps clinicians distinguish healthy tissue from concerning anomalies. When the procedure runs long, the display keeps running too.

◇ Portable Instrumentation

Handheld Gauges · Field Testers · Controller HMIs
Space is premium in portable designs. This display's compact footprint and minimal thickness preserve room for batteries, processors, and sensors. Industrial-grade reliability means fewer warranty claims and happier customers in the field.

Delivery & Support

◈ Sample lead time: 3–5 business days
◈ Volume lead time: 4–6 weeks from PO confirmation
◈ Technical package: Initialization code samples, mechanical drawings, reliability test reports, application notes
◈ Customization available: Brightness tuning, interface pinout modifications, cover glass bonding, FPC length adjustments
