Wholesale 5-inch 800*480 TFT resistive touch screen industrial control equipment display monitoring monitor LCD screen

Products

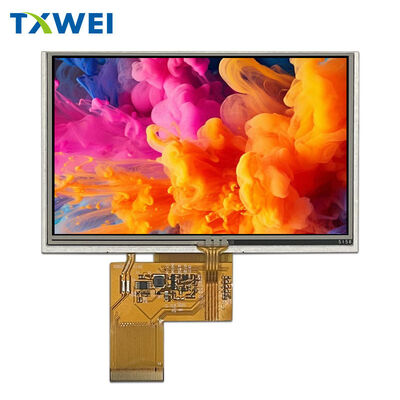

Wholesale 5-inch 800*480 TFT resistive touch screen industrial control equipment display monitoring monitor LCD screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16 days
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen, Guangdong

Brand Name

TXWEI

Certification

ISO9001 IS014001 IATF16949

Model Number

TXW500152N0-RTP

Document

Highlight:

5-inch TFT LCD resistive touch screen

industrial control equipment LCD monitor

800*480 TFT display with warranty

Product Description

✦ TXW500152N0-RTP ✦

5.0" Industrial WVGA TFT LCD + RTP

800×480 Resolution | 24-bit RGB | Resistive Touch | Wide-Temp Design

◆ Why Choose This Display?

▸ Crisp WVGA Visuals

800×RGB×480 resolution delivers sharp, vibrant imagery for industrial interfaces. 16.7M true colors powered by ILITEK ILI6122+ILI5960 dual-chip driver architecture. 0.135mm pixel pitch ensures text readability and icon clarity at arm's length.

▸ Reliable Resistive Touch

Integrated 4-wire resistive touch panel (RTP) — the trusted choice for industrial environments. Works flawlessly with gloves, styluses, or bare fingers. No capacitive interference issues in electrically noisy factory floors.

▸ 6 O'Clock Optimal Viewing

Engineered for bottom-viewing installations. Perfect for control panels mounted above eye level, kiosks, and embedded systems where the user looks up at the screen.

▸ Built for Extreme Conditions

→ Operating: -20°C to +70°C → Storage: -30°C to +80°C → Humidity: Up to 90% RH

Passes 96-hour high-temp storage (+80°C), 96-hour low-temp storage (-30°C), and 50-cycle thermal shock testing (-20°C↔70°C). This screen thrives where consumer displays fail.

◆ Technical Specifications

Display Core • Panel Type: TFT active matrix, normally white transmissive • Resolution: 800(H) × 480(V) pixels • Color Depth: 16.7M (24-bit RGB) • Pixel Arrangement: RGB vertical stripe • Active Area: 108.00mm × 64.80mm • Viewing Direction: 6 o'clock • Driver IC: ILITEK ILI6122 + ILI5960

Touch System • Type: 4-wire resistive touch panel (RTP) • Interface: Analog position sensing • Activation: Pressure-based (glove-compatible) • Durability: Rated for millions of touches

Backlight • Type: Edge-lit white LED array • LED Count: 12 chips (6 series × 2 parallel) • Forward Voltage: 17.4V ~ 19.8V • Forward Current: 40mA typical • Luminance: 240 cd/m² (typical with LCD+RTP) • Lifetime: 30,000 hours to 50% brightness

Electrical Interface • Video: 24-bit parallel RGB (R0-R7, G0-G7, B0-B7) • Clock: DCLK pixel clock input • Sync: HSYNC, VSYNC, DE (data enable) • Control: DISP (display on/off) • Power: VDD 3.0~3.6V (3.3V typical)

Physical Dimensions • Module Size: 120.70mm × 75.80mm × 2.80mm • With RTP: 116.80mm × 72.60mm × 4.15mm • Weight: TBD • FPC: 40-pin, 0.5mm pitch

◆ Pin Assignment (40-Pin FPC)

Power & Backlight ① LEDK — Backlight cathode (–) ② LEDA — Backlight anode (+) ③ GND — Ground ④ VDD — Logic power supply (3.3V)

RGB Data Bus ⑤~⑫ R0-R7 — Red data (LSB to MSB) ⑬~⑳ G0-G7 — Green data (LSB to MSB) ㉑~㉘ B0-B7 — Blue data (LSB to MSB)

Timing & Control ㉙ GND — Ground ㉚ DCLK — Pixel clock ㉛ DISP — Display enable ㉜ HSYNC — Horizontal sync ㉝ VSYNC — Vertical sync ㉞ DE — Data enable ㉟ NC — No connection ㊱ GND — Ground

Touch (NC on FPC — RTP bonded separately) ㊲ XR — Touch right (NC on FPC) ㊳ YD — Touch down (NC on FPC) ㊴ XL — Touch left (NC on FPC) ㊵ YU — Touch up (NC on FPC)

◆ Timing Characteristics

Clock Requirements • DCLK Frequency: 33.3 MHz typical (50 MHz max) • Refresh: 60Hz stable frame rate

Horizontal Timing • Active Display: 800 clock cycles • Total Line Period: 1056 typical (862~1200 range) • HSD Pulse: 1~40 clocks • Back Porch: 46 clocks • Front Porch: 16~354 clocks

Vertical Timing • Active Display: 480 lines • Total Frame Period: 525 typical (510~650 range) • VSD Pulse: 1~20 lines • Back Porch: 23 lines • Front Porch: 7~147 lines

◆ Application Scenarios
