Manufacturer produces 5-inch LCD screen 720*1280 LCD screen capacitive touch screen handheld device display

Products

Manufacturer produces 5-inch LCD screen 720*1280 LCD screen capacitive touch screen handheld device display

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16 days
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Shenzhen, Guangdong

Brand Name

TXWEI

Certification

ISO9001 IS014001 IATF16949

Model Number

TXW550039N0-CTP

Document

Highlight:

5-inch LCD screen with capacitive touch

720x1280 TFT LCD display

handheld device LCD screen display

Product Description

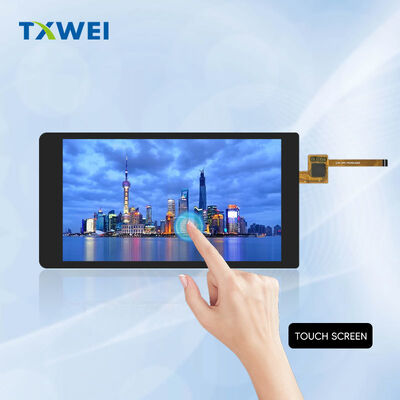

TXW550039N0-CTP 5.5" HD+ IPS Display with Capacitive Touch

◆━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━◆

Product Overview

The TXW550039N0-CTP delivers a complete visual and interactive solution in a compact 5.5-inch form factor. This integrated module combines a high-performance IPS LCD with a responsive capacitive touch panel, engineered for demanding embedded applications where display quality and user experience drive product success.

Manufactured by Shenzhen Tianxianwei Technology, this display module targets portable devices, industrial interfaces, and consumer electronics requiring reliable touch interaction and vibrant visuals.

✦ ───────────── ✦ ───────────── ✦ ───────────── ✦

Display Technology

IPS Panel Excellence In-Plane Switching technology eliminates the color shift and contrast loss typical of conventional TN panels. The liquid crystal molecules rotate parallel to the substrate, maintaining consistent optical performance across all viewing orientations.

Normally Black Operation Pixels default to black when unpowered. This architecture achieves deeper black levels, superior contrast ratios, and reduced light leakage compared to normally white alternatives. Dark user interfaces benefit from enhanced power efficiency.

Active Matrix Drive Individual thin-film transistors control each pixel independently. No shared electrode artifacts. No motion blur. Sharp, precise image rendering for both static content and dynamic graphics.

◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈

Resolution & Image Quality

HD+ Resolution 720 pixels horizontally. 1280 pixels vertically. The 9:16 aspect ratio optimizes portrait-oriented applications—handheld terminals, mobile devices, vertical control panels.

RGB Stripe Pixel Structure Vertical RGB subpixel arrangement. Natural color blending at standard viewing distances. Ideal for photographic imagery, data visualization, and color-critical interfaces.

Pixel Dimensions 94.5 micrometer pitch both horizontal and vertical. Approximately 269 pixels per inch. Smooth contour rendering. Crisp character legibility.

Active Viewing Area 68.04 mm width × 120.96 mm height. Substantial screen real estate within minimal physical footprint.

╭──────────────────────────────────────────╮ │ MECHANICAL SPECIFICATIONS │ ╰──────────────────────────────────────────╯

LCD Module Dimensions 71.04 mm module width. 129.56 mm module height. 1.65 mm total thickness. Exceptionally slim profile for modern industrial design integration.

Complete Assembly with Touch 76.00 mm assembly width. 143.46 mm assembly height. 2.81 mm total thickness. The additional 1.16 mm accommodates the capacitive touch layer without excessive bulk.

Weight Optimized for portable applications. Final specification determined by cover glass selection.

Flexible Circuit Connector 25-pin FPC for display signals. 6-pin FPC for touch interface. Compact, reliable interconnection. Compatible with automated assembly processes.

▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸▸

Capacitive Touch Panel

G+F+F Architecture Cover Glass + Film + Film construction. Three-layer structure with optically clear adhesive lamination. Cost-effective durability. Responsive touch performance.

Touch Controller FT5436DQQ integrated circuit. Dedicated touch processing. 100 Hz report rate typical. Smooth gesture tracking. Low host processor burden.

Multi-Touch Capability Five-point simultaneous detection. Complex gesture recognition. Pinch zoom. Two-finger rotation. Multi-finger gaming controls. Modern interface requirements fully supported.

Communication Protocol I2C standard interface. SCL clock at 400 kHz typical. SDA bidirectional data. INT interrupt output for event-driven host notification. RST reset control for initialization recovery.

Electrical Characteristics 2.8V to 3.3V operating range. 1.8V logic interface option. -20°C to +60°C functional temperature. <5 mW typical operating power. Efficient for battery-powered designs.

✧･ﾟ: ✧･ﾟ: ･ﾟ✧:･ﾟ✧ ✧･ﾟ: ･ﾟ✧:･ﾟ✧

Interface Architecture

MIPI DSI Standard 4-lane Mobile Industry Processor Interface. Industry-standard high-speed differential signaling. Low electromagnetic interference. Robust noise immunity for demanding environments.

Data Lanes D0, D1, D2, D3 differential pairs. Four parallel channels. Aggregate bandwidth supports 60 Hz refresh at native resolution with 24-bit color depth.

Clock Distribution CLK differential pair. Source-synchronous architecture. Simplified system clocking design. No complex skew matching required across data lanes.

Low Power Modes LP11, LP10, LP00 state support. Ultra-low power standby. Rapid wake from sleep. Battery life extension for mobile applications.

Command and Video Modes Command mode for register configuration and static images. Video mode for real-time streaming. Flexible system integration. Frame buffer bypass option.

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ ELECTRICAL SPECIFICATIONS ┃ ┗━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┛

I/O Supply Voltage (IOVCC) 1.65V minimum. 1.8V typical. 2.0V maximum. Logic level compatibility with modern application processors. Direct connection without level translation for 1.8V systems.

Analog Supply Voltage (VCI) 2.5V minimum. 2.8V typical. 3.3V maximum. Core display driver power. Stable regulation required for flicker-free operation.

Current Consumption Operating current dependent on display content and backlight setting. Sleep mode current minimized for battery conservation. Detailed characterization available upon request.

Gate Drive Generation Internal charge pump circuits generate TFT switching voltages. Positive and negative rails derived from single supply input. No external high-voltage supplies required.

▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓

Backlight System

LED Configuration 14 white LEDs in series-parallel arrangement. Edge-lit optical architecture. Precision light guide plate. Diffuser and brightness enhancement films.

Electrical Parameters Forward voltage: 19.6V minimum. 22.4V maximum. 40 mA typical operating current. Constant current drive recommended for uniform brightness.

Luminance Performance Specification to be determined with complete optical stack. Typical values available upon request for design guidance.

Operational Lifetime 30,000 hour LED rating. Defined as 50% brightness retention at 20 mA per LED. Extended lifetime achievable with current derating and thermal management.

Control Interface LEDA anode connections. LEDK cathode connections. PWM dimming compatible. Analog current adjustment supported.

◆ ◇ ◆ ◇ ◆ ◇ ◆ ◇ ◆ ◇ ◆ ◇ ◆ ◇ ◆ ◇ ◆

Timing and Control

Reset Architecture RESET pin active low. Minimum 10 microsecond pulse. 120 millisecond initialization period. Internal state machine sequences power-on configuration. OTP parameter loading during startup.

Tearing Effect Signal TE output pulse. Frame boundary indication. Host synchronization for tear-free updates. Essential for smooth animation and video content.

Power Sequencing IOVCC and VCI application order flexible. RESET release after supply stabilization. 15 millisecond delay before command acceptance. Display ready indication following initialization.

Sleep State Management Sleep In command for low power standby. Sleep Out command for normal operation. Rapid state transition. Context retention optional.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Environmental Resilience

Operating Temperature -20°C to +60°C for display and touch functions. Cold start capable. Full specification compliance across entire range.

Storage Conditions -30°C to +70°C non-operating. 20% to 90% relative humidity. Extended shelf stability. Global logistics compatible.

Thermal Shock Validation 10 cycle testing. -20°C exposure, 30 minutes. +60°C exposure, 30 minutes. Static state. No mechanical failure. No performance degradation.

High Temperature Operation +60°C continuous operation. 96-hour validation. No image sticking. No color shift. Touch responsiveness maintained.

Low Temperature Operation -20°C sustained operation. 96-hour validation. Response time within specification. Touch functional throughout.

Humidity Endurance 50°C at 90% relative humidity. 96-hour exposure. No bubble formation. No seal delamination. No frame rainbow effects.

✦ ═══════════════════════════════════════ ✦

Quality Assurance

Production Testing 100% electrical verification. Pixel defect inspection per industry standards. Touch coordinate linearity validation. Backlight uniformity measurement.

Reliability Validation Temperature cycling per IEC 60068-2-14. Mechanical shock per IEC 60068-2-27. Vibration resistance per IEC 60068-2-6. ESD immunity per IEC 61000-4-2.

Acceptance Standards Zero tolerance for missing segments. No electrical shorts. No unclear segments. No non-display conditions. No abnormal display patterns. No liquid crystal leakage. Seal integrity mandatory.

Environmental Compliance Lead-free materials throughout. RoHS Directive 2011/65/EU compliant. REACH substance restrictions observed. Responsible manufacturing certified.

◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈◈

Integration Guidance

Mechanical Mounting Four-edge support recommended. Avoid point loading on active area. Maintain clearance to conductive elements. ESD protection mandatory during handling.

Thermal Design LED junction temperature monitoring. Heat dissipation path through PCB. Copper area maximization in anode region. Ambient derating for sealed enclosures.

Electrical Layout Separate analog and digital ground planes. Star grounding at power entry. MIPI trace length matching. 100 ohm differential impedance. Shielding for EMI-sensitive applications.

Software Integration Sitronix ST7703 initialization sequence. Command set documentation available. Touch firmware configuration via I2C. Gesture libraries from FocalTech.

Optical Customization Cover lens shape and thickness. Anti-reflective coating. Anti-glare surface treatment. Privacy filter integration. Custom apertures and cutouts. Optical bonding services available.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Target Applications

Portable medical devices. Industrial handheld terminals. Mobile test equipment. Smart home control panels. Building automation interfaces. Security system keypads. Point-of-sale terminals. Inventory management systems. Educational electronics. Development platforms. Consumer appliances. Automotive aftermarket displays. Marine instrumentation. Outdoor portable devices.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Ordering Information

Model Designation TXW550039N0-CTP

Manufacturer Shenzhen Tianxianwei Technology Co., Ltd.

Sample Availability Engineering samples typically 2-3 weeks. Production lead time 4-6 weeks standard. Volume pricing negotiated from 1,000 units annually.

Customization Services Cover glass shape and thickness. Logo printing and branding. Brightness binning and selection. FPC length and connector position. Interface voltage customization. Touch firmware modification. Optical bonding to custom cover lens. Regulatory certification support.
