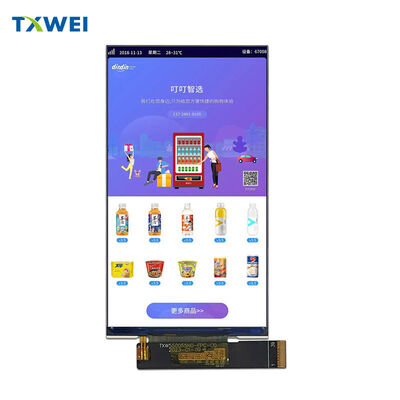

5.5-inch TFT LCD screen 1080*1920ips high-definition vertical screen MIPI plug-in can be matched with TP handheld device display

MOQ: negotiate
Price: negotiate
Standard Packaging: cardboard
Delivery Period: 16
Payment Method: L/C TT D/P
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong,China
Brand Name
TXWEI
Certification
CE ROHS FCC
Model Number
TXW550055N0
Document
TXW550055N0 _SPEC.pdf
Active Area:
68.04(H) * 120.96(V)
Backlight Current:
60mA
Lumens Degrees:
520cd/m²
Storage temperature:
-30+80℃
Lcm Pin N Count:
39pin
Laminating Process:
ALL O’CLOCK
Number Of Pixels:
1080*1920
Mechanical OutlineSize(W*H*T):
70.04*128.29*1.68
Highlight:

5.5-inch TFT LCD screen

,

1080x1920 IPS high-definition display

,

MIPI plug-in LCD module

Product Description

TXW550055N0

5.46" Full HD IPS LCD Display Module

◆ ◆ ◆ PRODUCT OVERVIEW ◆ ◆ ◆

Premium 5.46-inch TFT LCD display delivering stunning Full HD resolution through advanced IPS technology for applications requiring exceptional visual performance and wide viewing flexibility.
1080 × 1920 pixels. 16.7 million colors. Normally Black mode.
Manufactured by Shenzhen Tianxianwei Technology with Himax HX8399-C driver IC and 4-lane MIPI DSI high-speed interface.

▌▌▌ DISPLAY SPECIFICATIONS ▌▌▌

Active Area & Resolution
Active display area measures 68.04 mm × 120.96 mm with 1080 × RGB × 1920 pixel configuration in RGB stripe arrangement. Square pixel pitch of 63 μm × 63 μm ensures uniform image quality without geometric distortion.
IPS Technology
All O'Clock viewing direction support delivers consistent color and contrast from every angle. No color shift. No compromise.
Color Performance
16.7 million software-selectable colors. Normally Black mode for deep blacks and superior contrast.

════════════════════════════════════════

INTERFACE & CONNECTIVITY

Modern 4-Lane MIPI DSI Architecture
High-speed differential signaling through 39-pin FPC connector enables reliable video transmission with reduced EMI and simplified PCB integration compared to legacy parallel interfaces.
Power Delivery
IOVCC logic supply at 1.8V (1.65V ~ 3.3V tolerant). Analog drivers powered by VSP/VSN at ±4.8V ~ ±6.0V. Gate drivers generate VGH (+11V) and VGL (-7V) internally for TFT switching.
Differential Pairs
Clock lane (CLKP/CLKN) plus four data lanes (D0-D3) handle packed pixel streams. TE signal prevents tearing. PWM output enables external LED driver control.

● ● ● BACKLIGHT SYSTEM ● ● ●

Edge-Lit LED Array with 14 High-Efficiency White LEDs
Sophisticated edge-lighting delivers uniform illumination with minimal thickness.
Electrical Parameters
Forward voltage 19.6V ~ 22.4V. Typical current 40 mA per string.
Optical Output
520 cd/m² typical luminance with LCD panel.
Reliability
30,000 hours LED lifetime to 50% brightness at 20mA operation.

★ ★ ★ ENVIRONMENTAL RATINGS ★ ★ ★

Operating Range
-20°C to +70°C working temperature. 20% ~ 90% RH humidity tolerance.
Storage Conditions
-30°C to +80°C extended storage range.

╔══════════════════════════════════════╗

RELIABILITY VALIDATION

╚══════════════════════════════════════╝

Comprehensive Environmental Stress Testing
High temperature storage at +80°C for 96 hours. Low temperature storage at -30°C for 96 hours. Operating temperature extremes validated at +70°C and -20°C for 96 hours each. High temperature/humidity storage at 50°C × 90%RH for 96 hours. Thermal shock cycling -20°C ↔ +60°C for 10 cycles.
Zero Defects Accepted
No missing segments. No shorts. No liquid crystal leakage. No bubbles. No seal failures.

◈ OPTICAL PERFORMANCE ◈

Contrast & Response
700:1 minimum contrast ratio. 1000:1 typical. Response time 35 ms typical, 45 ms maximum.
Viewing Freedom
80° typical viewing angles in all directions (top, bottom, left, right) maintaining CR ≥ 10.
Color Gamut
60% ~ 70% NTSC coverage for vibrant color reproduction.
