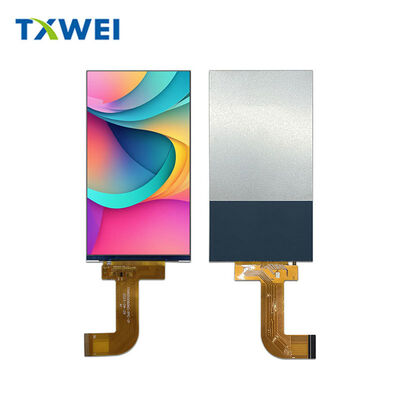

5.5-inch IPS full view display MIPI LCD screen 720*1280LCD display screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW550060N0

Document

LCM Interface:

MIPI Interface

Lcm Pin N Count:

30pin

Backligh Voltage:

Storage temperature:

-30+80℃

Lumens Degrees:

1000cd/m²

Number Of Pixels:

720*1280

Drive Element:

TFT Active Matrix

Pixel Pitch (W*H):

0.00945(H) *0.0945(V)

Highlight:

5.5-inch IPS MIPI LCD screen

720x1280 TFT LCD display module

full view display LCD screen

Product Description

TXW550060N0

5.5" Industrial IPS Display Module

Precision optics. Industrial stamina. Clean integration.

Visual Performance

720 × RGB × 1280 native resolution. 294 PPI pixel density. Every element rendered with crisp definition — from fine text to complex waveforms.

IPS technology delivers full viewing angle freedom. No color inversion at oblique angles. No contrast degradation when viewed from below or the side. The panel performs identically whether mounted horizontally in a desktop instrument or vertically in a handheld scanner.

16.7 million colors selectable via software calibration. Smooth gradients. Accurate skin tones in medical imaging. Precise color coding in industrial HMI applications.

Active area: 68.04 mm × 120.96 mm
Pixel geometry: RGB stripe, 0.0945 mm × 0.0945 mm pitch
Display mode: Normally Black — deep blacks, high contrast

Environmental Endurance

Industrial displays don't live in climate-controlled offices. This one is built for reality.

Operating temperature: -20°C to +60°C
Cold storage floors in logistics hubs. Vehicle dashboards in desert heat. The module maintains full optical and electrical specification across the entire span.

Storage temperature: -30°C to +80°C
Extended warehousing. Transit through extreme climates. Unpowered survival without delamination, seal degradation, or liquid crystal damage.

Humidity tolerance: Up to 90% RH
Coastal installations. Food processing facilities. Steam-cleaned equipment bays. Internal electronics stay protected.

Signal Interface: MIPI DSI

Modern embedded systems demand speed and simplicity. The 4-lane MIPI DSI interface delivers both.

Differential data pairs: D0N/D0P through D3N/D3P — four independent high-speed lanes for pixel data burst transmission
Differential clock: CLKN/CLKP — dedicated timing reference
Control signals: RST (hardware reset, active low), TE (tearing effect frame sync), LCD_ID (module identification)

Power rails:
— VDD_3.3V for logic core
— IOV_1.8V for interface I/O
— GND planes for clean return paths

Thirty total pins. Compact FPC connector. Straightforward PCB layout. Reduced electromagnetic interference compared to parallel RGB alternatives. Shorter trace lengths. Simpler shielding requirements.

Illumination System

The edge-lit LED backlight uses 15 white emitters in series electrical configuration.

Electrical characteristics:
— Forward voltage: 16.8V to 18.6V
— Typical current: 100mA
— Power input: LEDA (anode) × 4 pins, LEDK (cathode) × 4 pins

Optical output:
— Typical luminance: 1050 cd/m² with LCD stack
— Uniformity: Consistent across active area, no edge dimming or corner falloff

Longevity:
— 20,000 hour rated life to 50% initial brightness (at 20mA per LED)
— Years of continuous operation in always-on industrial applications
— Reduced maintenance cycles. Lower total cost of ownership.

Mechanical Design

Module envelope: 70.34 mm × 128.10 mm × 1.62 mm

The 1.62 mm thickness includes all optical layers, driver IC, and backlight assembly. No external driver boards. No separate inverter modules. Everything integrated into a single thin stack.

FPC tail extends from the display edge for flexible mechanical integration. Route through hinges. Fold around internal components. Thread through narrow chassis openings. The mechanical design adapts to your industrial design constraints — not the reverse.

Mounting considerations:
— Non-active border areas for adhesive or bezel retention
— Seal-compatible perimeter for IP-rated enclosures
— Ground connection points for EMI compliance

Driver Architecture: ILI9881C

The ILI9881C single-chip driver integrates all display control functions.

Source driver: 720 channels — one per RGB subpixel column
Gate driver: 1280 channels — one per horizontal scan line
DC-DC converter: On-chip generation of AVDD, AVEE, and other internal bias voltages from single 3.3V input
Gamma correction: 64-step programmable per color channel
Power management: Sleep mode, deep standby, and active states with sub-millisecond wake transitions

Configuration storage: Internal EEPROM retains factory calibration, VCOM settings, and power-on defaults. No external configuration required after initial integration.

Timing and Control

Reset sequence:
— Minimum pulse width: 10 microseconds
— Reset cancel time: 5 milliseconds (standard wake), 120 milliseconds (full register reload from EEPROM)
— Mandatory 5 millisecond delay before first command after reset release

Power sequencing:
— VDDI (I/O voltage) stable before VCI (analog core)
— Both rails stable before RESX deassertion
— LP-11 state on MIPI lanes during power-up
— >1 millisecond delay before MIPI high-speed mode entry

Tearing effect output:
— TE pin provides frame boundary synchronization
— Eliminates visual tearing in partial update scenarios
— Essential for camera viewfinder and real-time oscilloscope applications

Reliability Verification

Every production lot undergoes environmental stress screening.

High temperature storage: 96 hours at +80°C — validates seal integrity, polarizer adhesion, and material stability
Low temperature storage: 96 hours at -30°C — confirms cold-start capability and thermal shock resistance
High temperature operation: 96 hours at +60°C powered — exercises driver IC, backlight, and electrical interconnect under thermal load
Low temperature operation: 96 hours at -20°C powered — verifies liquid crystal fluidity and response time at viscosity extremes
Humidity storage: 96 hours at 60°C / 90% relative humidity — tests moisture ingress resistance and corrosion immunity
Thermal shock cycling: 10 complete cycles, -30°C to +80°C, 30 minute dwells — accelerates life stress on dissimilar material interfaces

Acceptance criteria:
— Zero functional failures
— No missing segments, shorted pixels, or display anomalies
— No liquid crystal leakage
— No low-temperature bubble formation
— No end seal loosening or frame rainbow effects

Compliance & Materials

RoHS directive compliant — all materials and processing lead-free
Halogen-free options available upon request
REACH substance disclosure provided for regulatory documentation
Conflict mineral reporting supported for supply chain transparency

Integration Support

Sample availability: Engineering samples typically ship within 5 business days
Evaluation kit: Optional driver board with HDMI-to-MIPI bridge for rapid prototyping
Mechanical samples: Non-functional units for fit-check and fixture development
Technical documentation: Full datasheet, initialization code examples, optical measurement reports

Application engineering support: Direct access to display specialists for timing optimization, custom gamma curves, and mechanical integration consulting.

Tags:

5.0 Inch TFT LCD Module,

tft module,

TFT LCD Module High brightness

10.1-inch 800*1280 high-definition300-500nits IPS LCD TFT display module LVDS

Contact Now

Video

5.0 Inch TFT LCD Module High Brightness LVDS Interface

Contact Now

Video

2.1-inch 480*480 intelligent knob switch touch screen RGB interface

Contact Now

Video

3.95-inch 720 * 720 square TFT LCD module 86 intelligent switch display panel

Contact Now

Video

12.1 Inch Color LCD Full HD Display Panel 450nits

Contact Now

Video

4.5inch Full Color TFT LCD Module 300nits Display High Brightness

Contact Now

Video

3.97-inch Raspberry Pi display panel 300cd/m² brightness IPS 480*800 resolution

Contact Now

PRODUCTS DETAILS

Products

TFT LCD Display

TFT LCD Module

TFT LCD Screen

Round TFT LCD

Square TFT Display

Bar Type TFT

HDMI Driver Board

VGA Driver Board

Capacitive Touch Panel

3 Inch LCD

4 Inch LCD

7 Inch LCD Module

10 Inch LCD Module

5.5-inch IPS full view display MIPI LCD screen 720*1280LCD display screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW550060N0

Document

TXW550060N0 _SPEC.pdf

LCM Interface:

MIPI Interface

Lcm Pin N Count:

30pin

Backligh Voltage:

18V

Storage temperature:

-30+80℃

Lumens Degrees:

1000cd/m²

Number Of Pixels:

720*1280

Drive Element:

TFT Active Matrix

Pixel Pitch (W*H):

0.00945(H) *0.0945(V)

Minimum Order Quantity:

negotiate

Price:

negotiate

Packaging Details:

cardboard

Delivery Time:

Payment Terms:

L/C TT D/P

Supply Ability:

10000pcs

Highlight

5.5-inch IPS MIPI LCD screen

720x1280 TFT LCD display module

full view display LCD screen

Product Description

TXW550060N0

5.5" Industrial IPS Display Module

Precision optics. Industrial stamina. Clean integration.

Visual Performance

720 × RGB × 1280 native resolution. 294 PPI pixel density. Every element rendered with crisp definition — from fine text to complex waveforms.

IPS technology delivers full viewing angle freedom. No color inversion at oblique angles. No contrast degradation when viewed from below or the side. The panel performs identically whether mounted horizontally in a desktop instrument or vertically in a handheld scanner.

16.7 million colors selectable via software calibration. Smooth gradients. Accurate skin tones in medical imaging. Precise color coding in industrial HMI applications.

Active area: 68.04 mm × 120.96 mm
Pixel geometry: RGB stripe, 0.0945 mm × 0.0945 mm pitch
Display mode: Normally Black — deep blacks, high contrast

Environmental Endurance

Industrial displays don't live in climate-controlled offices. This one is built for reality.

Operating temperature: -20°C to +60°C
Cold storage floors in logistics hubs. Vehicle dashboards in desert heat. The module maintains full optical and electrical specification across the entire span.

Storage temperature: -30°C to +80°C
Extended warehousing. Transit through extreme climates. Unpowered survival without delamination, seal degradation, or liquid crystal damage.

Humidity tolerance: Up to 90% RH
Coastal installations. Food processing facilities. Steam-cleaned equipment bays. Internal electronics stay protected.

Signal Interface: MIPI DSI

Modern embedded systems demand speed and simplicity. The 4-lane MIPI DSI interface delivers both.

Differential data pairs: D0N/D0P through D3N/D3P — four independent high-speed lanes for pixel data burst transmission
Differential clock: CLKN/CLKP — dedicated timing reference
Control signals: RST (hardware reset, active low), TE (tearing effect frame sync), LCD_ID (module identification)

Power rails:
— VDD_3.3V for logic core
— IOV_1.8V for interface I/O
— GND planes for clean return paths

Thirty total pins. Compact FPC connector. Straightforward PCB layout. Reduced electromagnetic interference compared to parallel RGB alternatives. Shorter trace lengths. Simpler shielding requirements.

Illumination System

The edge-lit LED backlight uses 15 white emitters in series electrical configuration.

Electrical characteristics:
— Forward voltage: 16.8V to 18.6V
— Typical current: 100mA
— Power input: LEDA (anode) × 4 pins, LEDK (cathode) × 4 pins

Optical output:
— Typical luminance: 1050 cd/m² with LCD stack
— Uniformity: Consistent across active area, no edge dimming or corner falloff

Longevity:
— 20,000 hour rated life to 50% initial brightness (at 20mA per LED)
— Years of continuous operation in always-on industrial applications
— Reduced maintenance cycles. Lower total cost of ownership.

Mechanical Design

Module envelope: 70.34 mm × 128.10 mm × 1.62 mm

The 1.62 mm thickness includes all optical layers, driver IC, and backlight assembly. No external driver boards. No separate inverter modules. Everything integrated into a single thin stack.

FPC tail extends from the display edge for flexible mechanical integration. Route through hinges. Fold around internal components. Thread through narrow chassis openings. The mechanical design adapts to your industrial design constraints — not the reverse.

Mounting considerations:
— Non-active border areas for adhesive or bezel retention
— Seal-compatible perimeter for IP-rated enclosures
— Ground connection points for EMI compliance

Driver Architecture: ILI9881C

The ILI9881C single-chip driver integrates all display control functions.

Source driver: 720 channels — one per RGB subpixel column
Gate driver: 1280 channels — one per horizontal scan line
DC-DC converter: On-chip generation of AVDD, AVEE, and other internal bias voltages from single 3.3V input
Gamma correction: 64-step programmable per color channel
Power management: Sleep mode, deep standby, and active states with sub-millisecond wake transitions

Configuration storage: Internal EEPROM retains factory calibration, VCOM settings, and power-on defaults. No external configuration required after initial integration.

Timing and Control

Reset sequence:
— Minimum pulse width: 10 microseconds
— Reset cancel time: 5 milliseconds (standard wake), 120 milliseconds (full register reload from EEPROM)
— Mandatory 5 millisecond delay before first command after reset release

Power sequencing:
— VDDI (I/O voltage) stable before VCI (analog core)
— Both rails stable before RESX deassertion
— LP-11 state on MIPI lanes during power-up
— >1 millisecond delay before MIPI high-speed mode entry

Tearing effect output:
— TE pin provides frame boundary synchronization
— Eliminates visual tearing in partial update scenarios
— Essential for camera viewfinder and real-time oscilloscope applications

Reliability Verification

Every production lot undergoes environmental stress screening.

High temperature storage: 96 hours at +80°C — validates seal integrity, polarizer adhesion, and material stability
Low temperature storage: 96 hours at -30°C — confirms cold-start capability and thermal shock resistance
High temperature operation: 96 hours at +60°C powered — exercises driver IC, backlight, and electrical interconnect under thermal load
Low temperature operation: 96 hours at -20°C powered — verifies liquid crystal fluidity and response time at viscosity extremes
Humidity storage: 96 hours at 60°C / 90% relative humidity — tests moisture ingress resistance and corrosion immunity
Thermal shock cycling: 10 complete cycles, -30°C to +80°C, 30 minute dwells — accelerates life stress on dissimilar material interfaces

Acceptance criteria:
— Zero functional failures
— No missing segments, shorted pixels, or display anomalies
— No liquid crystal leakage
— No low-temperature bubble formation
— No end seal loosening or frame rainbow effects

Compliance & Materials

RoHS directive compliant — all materials and processing lead-free
Halogen-free options available upon request
REACH substance disclosure provided for regulatory documentation
Conflict mineral reporting supported for supply chain transparency

Integration Support

Sample availability: Engineering samples typically ship within 5 business days
Evaluation kit: Optional driver board with HDMI-to-MIPI bridge for rapid prototyping
Mechanical samples: Non-functional units for fit-check and fixture development
Technical documentation: Full datasheet, initialization code examples, optical measurement reports

Application engineering support: Direct access to display specialists for timing optimization, custom gamma curves, and mechanical integration consulting.
