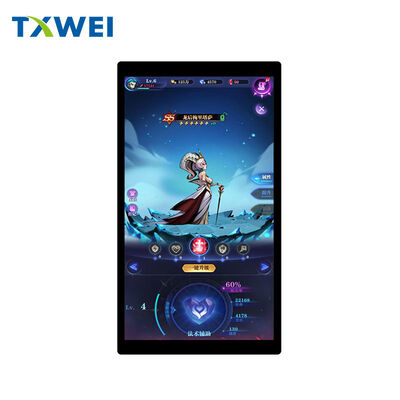

5.5-inch LCD gaming handheld screen 1080*1920 high brightness 700nits display screen

MOQ: 1
Price: negotiation
Delivery Period: 7-16days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 10000pcs
Detail Information
Product Description
Detail Information
Place of Origin
shenzhen
Brand Name
TXWEI
Certification
CE FCC ROHS
Model Number
TXW550081N0-SY
Document
TXW550081N0-CTP_SPEC.pdf
Number Of Pixels:
1080*1920
Viewing Direction:
IPS
Display Interface:
MIPI 4 LANE
Brightness:
700 Nits
Active Area:
68.53*121.82(mm)
Outline Size:
70.53*127.28*1.68/75.92*136.3*2.56(mm)
Operating Temperature:
-20+60℃
Storage Temperature:
-30+70℃
Number Of Pins:
40pin
Highlight:

5.5-inch LCD gaming handheld screen

,

1080x1920 high brightness display

,

700nits TFT LCD display

Product Description

TXW550081N0-SY

5.5" FHD IPS + Capacitive Touch

◆ Full HD. 400 PPI. Zero pixel visibility.
The 1080 × 1920 resolution pushes past the threshold where individual pixels disappear at normal viewing distances. Text renders razor-sharp. Icons stay defined even when scaled down. Medical imaging. Industrial HMI. Consumer interfaces. All benefit from the clarity.
► IPS. Full angle. No compromise.
Color inversion doesn't exist here. Contrast holds from extreme angles. Mount it horizontally in a control panel or hold it vertically in your hand — the image remains identical. No washed-out whites. No crushed blacks when viewed off-axis.
◆ 10-point touch. I2C. Direct.
Projected capacitive sensor laminated directly to the display surface. No separate overlay to align. No air gap. Pinch, zoom, rotate — complex gestures track without ghosting. CTP_SDA and CTP_SCL connect straight to your application processor. Linux has the driver. Android has the driver. Windows embedded has the driver. No USB controller. No driver installation headaches.
► MIPI DSI. 4-lane. Modern.
D0N/D0P through D3N/D3P carry differential pixel data at up to 1 Gbps per lane. Enough bandwidth for 120 Hz refresh with headroom to spare. CLKN/CLKP provides clean timing. Source-synchronous architecture eliminates skew concerns. TE pin locks frame updates. Video plays without tearing. Camera viewfinders stay smooth.
◆ Power. Sequenced. Precise.
VSP at +5.7V. VSN at -5.7V. Dual analog rails supply the source driver and gamma reference. External regulation required — the module doesn't integrate DC-DC. I/O runs at 1.8V nominal, tolerant to 3.3V. Direct connection to modern application processors. No level translation needed.
Sequencing is mandatory. VDD1 stable before VSP and VSN. 10ms minimum delay. 12ms VSN stabilization before RESX release. Violate this and risk latch-up or incomplete initialization.
► 18 LEDs. 30,000 hours.
Edge-lit architecture with 18 white emitters. Light injects from the module edge, distributes across the 5.5 inch diagonal via precision light guide. 700 cd/m² typical brightness. Readable under office lighting. Viable in shaded outdoor conditions.
30,000 hour lifetime to 50% initial output at 20mA per LED. Run them at the 60mA typical current and still count years of service. PWM dimming scales from 0% to 100% without color temperature shift. Dark room to bright sun — one module handles both.
◆ 2.56 mm. Total stack.
LCD module: 1.68 mm. Add the touch sensor, cover glass, lamination layers — 2.56 mm complete. No external controller boards. No separate touch overlay to align during assembly. 40-pin FPC extends from the short edge. Bend it. Fold it. Route it through narrow chassis channels. The mechanical design yields to your industrial design, not the reverse.
► -20°C to +60°C. Operating.
Cold start at -20°C. The liquid crystal viscosity remains within operational envelope. No temporary image sticking. No response time degradation. Run it at +60°C continuously and the display keeps performing.
Storage extends to -30°C to +70°C. Unpowered survival without delamination, seal degradation, or liquid crystal damage. Humidity tolerance to 90% RH. Coastal installations. Food processing. Steam-cleaned equipment bays.
◆ HX83112-A. Inside.
1080-channel source driver. 1920-channel gate driver. On-chip gamma correction — 64-step programmable per color channel. Calibrate for panel-to-panel variation. Match multiple displays in tiled configurations without visible seams.
Internal grayscale voltage generation from VSP/VSN inputs. No external resistor ladders. No precision voltage references. EEPROM stores factory calibration, VCOM setting, power-on defaults. Zero host configuration required for basic operation. Sleep mode draws less than Li-ion self-discharge. Wake in under 5ms. Full register reload in 120ms after software reset.
► Tested to failure. So yours doesn't.
✓ 96 hours at +70°C. Storage.
✓ 96 hours at -30°C. Storage.
✓ 96 hours at +60°C. Powered.
✓ 96 hours at -20°C. Powered.
✓ 96 hours at 50°C / 90%RH. Humidity.
✓ 10 cycles. -20°C to +60°C. Thermal shock.
Zero functional failures. Zero missing pixels. Zero liquid crystal leakage. No seal loosening. No touch sensitivity drift beyond specification.
