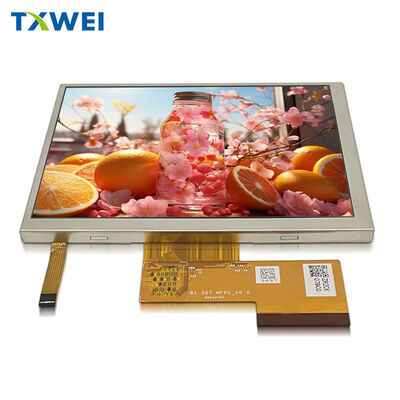

5.7-inch 640*480 high brightness industrial equipment and instruments in stock, 350 brightness LCD display screen

Products

5.7-inch 640*480 high brightness industrial equipment and instruments in stock, 350 brightness LCD display screen

MOQ:	negotiate
Price:	negotiate
Standard Packaging:	cardboard
Delivery Period:	16
Payment Method:	L/C TT D/P
Supply Capacity:	10000pcs

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong,China

Brand Name

TXWEI

Certification

CE ROHS FCC

Model Number

TXW570002B0

Document

Lcm Pin N Count:

60pin

Size:

Drive Element:

TFT Active Matrix

Backligh Voltage:

Mechanical OutlineSize(W*H*T):

127*98.43*5.85

LCD Type:

Normally Black

Operating temperature:

-30+80℃

Backlight Current:

140mA

Highlight:

5.7-inch high brightness TFT LCD

640*480 industrial LCD display

350 brightness TFT LCD module

Product Description

5.7" Industrial TFT LCD | 640×480, Triple-Interface, Full Viewing Angle

TXW570002B0 — One display. Three interfaces. Zero compromise.

◆ The Specs That Matter

⊘ Resolution: 640 × RGB × 480
⊘ Active Area: 115.2 × 86.4 mm
⊘ Pixel Pitch: 0.18 × 0.18 mm
⊘ Color Depth: 16.7M colors (24-bit)
⊘ Viewing Angle: All-o'clock — readable from any direction
⊘ Operating Temperature: -30°C to +80°C
⊘ Brightness: 350 cd/m² typical
⊘ Backlight: 21 white LEDs, 30,000 hour lifespan
⊘ Dimensions: 127.0 × 98.4 × 5.85 mm

◆ One Hardware. Three Protocols.

Why lock into one interface? TXW570002B0 adapts to your system — not the other way around.

▸ RGB Mode
24-bit parallel. Legacy MCU friendly. Drop-in replacement for older designs.

▸ LVDS Mode
6-bit or 8-bit selectable. VESA or JEIDA mapping. Noise-resistant differential signaling for long cable runs and harsh electrical environments.

▸ MIPI Mode
High-speed, low-power. Optimized for modern ARM SoCs and mobile chipsets.

Switch between all three via IM1/IM0 configuration pins. Same inventory. Different projects. No board redesign. No SKU proliferation.

◆ Built for Real Environments

▸ Wide-temperature reliability
Cold-start at -30°C. Run continuous at +80°C. Validated through 96-hour high-temperature storage, thermal shock cycling (-30°C↔80°C, 10 cycles), and 60°C/90%RH humidity stress tests.

▸ Consistent visibility
All-o'clock viewing angle technology eliminates contrast drop-off. Mount it vertical, horizontal, or any orientation in between — the display stays readable.

▸ Long-life backlight
21-chip white LED edge-lighting array driven at 140 mA delivers 350 cd/m² brightness with 80% uniformity. 30,000-hour lifespan to 50% brightness. Forward voltage 8.4V–9.6V for easy integration with standard industrial power rails.

▸ Compact integration
5.85 mm total thickness. FPC flexible circuit connection. Standardized pinout reduces mechanical design cycles.

▸ Green manufacturing
Full lead-free process. RoHS compliant for global export compliance.

◆ Cut BOM Complexity

One SKU replaces three interface-specific displays.
→ Simplify procurement
→ Reduce supply risk
→ Accelerate time-to-market

◆ Typical Applications

◐ Industrial HMI panels — machine interfaces that demand 24/7 reliability
◐ Portable test & measurement — handheld instruments with flexible viewing angles
◐ Medical displays — equipment requiring stable performance across temperature swings
◐ Vehicle-mounted monitors — automotive and specialty vehicle applications
◐ Security & access control terminals — public-facing kiosks in varying environments
